1″ to 1-7/8″ Wide Flange Tank Trolley – Temporary, 5000 lbs. (22 kN), OSHA 1926.5 subpart M, 1910.66 app. C, ANSI A10.14, Z359.1, 310 lbs. (141 kg)

SKU 010-LVKN180 Category Brand:

$2,670.15 / Each

Available on backorder

Available on backorder

Add to quote

Description

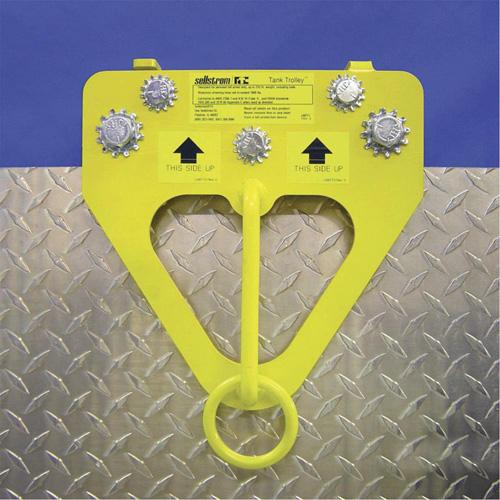

  • Designed for use on water and fuel storage tanks
  • Provides a 5,000 lb anchorage as required by OSHA and ANSI standards
  • Rides on the top lip of the storage tank and can be used with a standard lanyard or self-retracting lifeline
  • Standards compliance: materials meet OSHA 1926.5 subpart M, 1910.66 app. C, ANSI A10.14, Z359.1

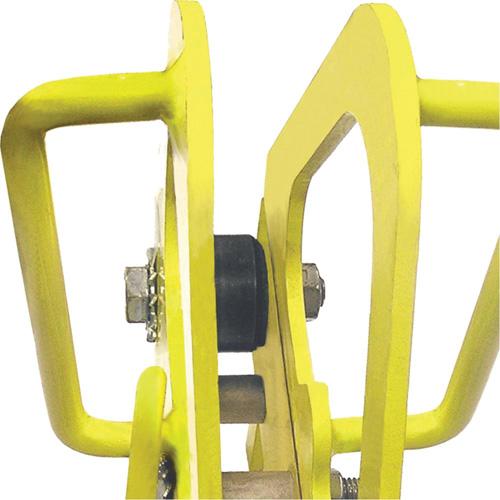

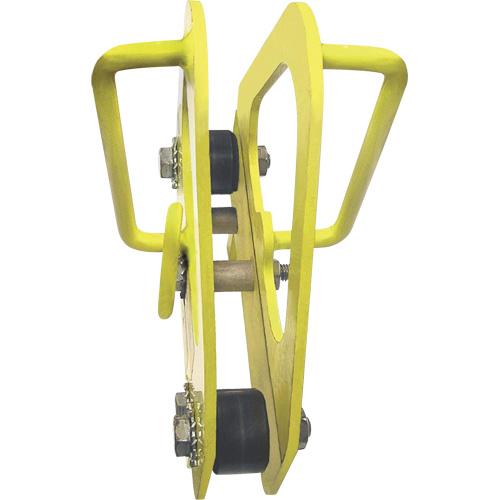

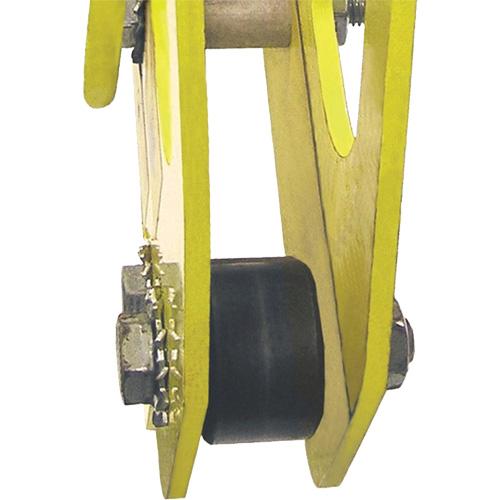

  • Trolley: 1/4" steel rollers, powder-coated finish with forged steel O-ring attachment, polyurethane composite material
  • Capacity: 310 lb designed working load
  • For storage tanks with a minimum diameter of 10', fits 1" to 1 7/8" flange widths
  • Made in the U.S.

Additional information

Weight 0.57606184 kg
Dimensions 27.736800000000002 × 22.2504 × 4.572 cm
Manufacturer Model

V82236
Type

Temporary
Min. Tensile Strength

5000 lbs. (22 kN)
Standard(s) Met

OSHA 1926.5 subpart M, 1910.66 app. C, ANSI A10.14, Z359.1
Weight Capacity

310 lbs. (141 kg)
