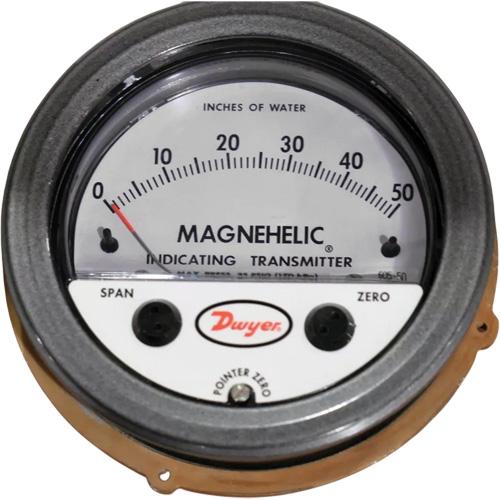

605 Series Magnehelic® Differential Pressure Gauge & Indicating Transmitter - 4", 0 - 50 in. w.c., Panel Mount, Analogue, 11 psi, '+/-2%, ±1% F.S./yr.

605 Series Magnehelic® Differential Pressure Gauge & Indicating Transmitter – 4″, 0 – 50 in. w.c., Panel Mount, Analogue, 11 psi, ‘+/-2%, ±1% F.S./yr.

SKU 010-LKF191 Category Brand:

$842.10 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Provides for both visual monitoring and electronic control of very low differential pressure
  • Ideal for control applications in building HVAC systems where local indication is desired during routine maintenance checks or necessary when troubleshooting the system
  • Easy-to-read dial gauge is complimented by the two-wire, 4-20 mA control signal utilizing the time-proven Dwyer® Magnehelic® gauge mechanical design and Series 600 transmitter technology
  • The two-wire design with terminal strip on the rear simplifies connection in any 4-20 mA control loop powered by a 10-35 VDC supply
  • Services air and non-combustible, compatible gases

Additional information

Weight 0.000453592 kg
Dimensions 0.03048 × 0.03048 × 0.03048 cm
Manufacturer Model

605-50
Dial Diameter

4"
Pressure Range

0 – 50 in. w.c.
Connection

Panel Mount
Dial Type

Analogue
Maximum Pressure

11 psi
Gauge Accuracy

+/-2%
Gauge Stability

±1% F.S./yr.
