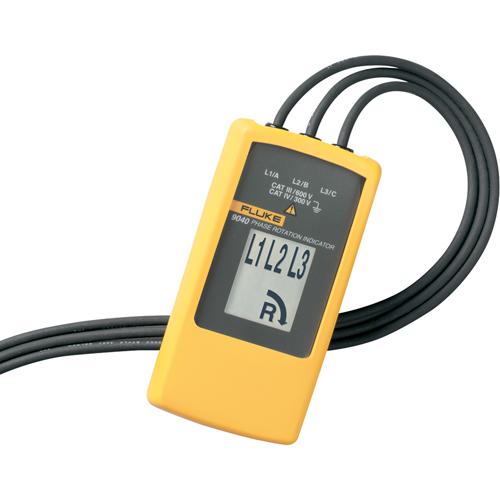

9040 Phase Rotation Indicators – Digital, 3, 2 Years

Description

• A portable handheld instrument designed to detect the rotary field of three-phase systems
• With three test leads, this rugged tester easily determines a clockwise or counter-clockwise direction
• Large display to easily determine field rotation
• Ideal when connecting induction motors, replacing transformers and paralleling generators
• Nominal voltage from 40 V to 690 V AC
• Frequency range (fn) from 15 to 400 Hz
• Current pickup is 1 mA
• Nominal test current (in per phase) is 1 mA
• Cat. III 600 V safety rating
• Covered by a 2-year warranty
• Includes three test leads and probes, alligator clips and a user's manual
• Phase Rotation Indicator
