B5000 Series Pressure Gauge – 2-1/2″, 0 – 100 psi/0-690 kPa, Bottom Mount, Digital, 0 – 7.03 kgf/cm², 0 – 203.6 inHg, 0 – 0.689 Mpa, 0.1 psi, 0.01 kgf/cm², 0.1 inHg, 1 kPa, 0.001 Mpa, 1% F.S.

SKU 010-LLF975 Category Pressure Gauges Brand: Baker

$156.45 / Each

Available on backorder

Description

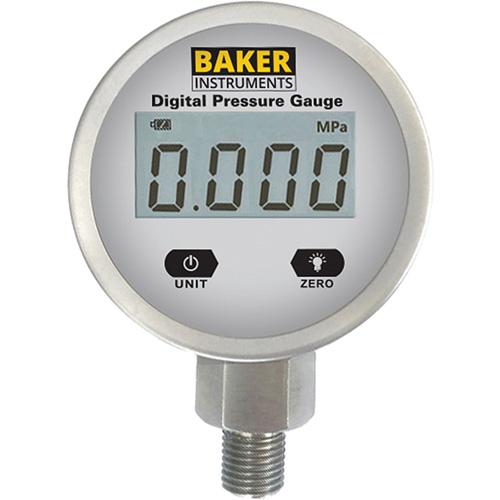

This digital pressure gauge with integral bar graph features 1% accuracy, backlighting for easy reading, and up to 7 selectable engineering units, allowing one gauge to be used in a variety of pressure applications
Displays real-time pressure with short response times and excellent long-term stability
The all stainless steel wetted parts make this gauge suitable for a wide variety of industrial liquids and gaseous mediums
Compatible with air, liquids, and gases
4-digit LCD display with backlight provides clear readings
Push-button zero
Includes: (2) AAA batteries

Weight	0.23586784 kg
Dimensions	10.9218984 × 6.3498984 × 10.159898400000001 cm
Manufacturer Model	B50100
Dial Diameter	2-1/2"
Pressure Range	0 – 100 psi/0-690 kPa
Connection	Bottom Mount
Dial Type	Digital
Additional Measuring Ranges	0 – 7.03 kgf/cm², 0 – 203.6 inHg, 0 – 0.689 Mpa
Resolutions	0.1 psi, 0.01 kgf/cm², 0.1 inHg, 1 kPa, 0.001 Mpa
Accuracy	1% F.S.
Long-Term Stability	0.5% F.S./Year
