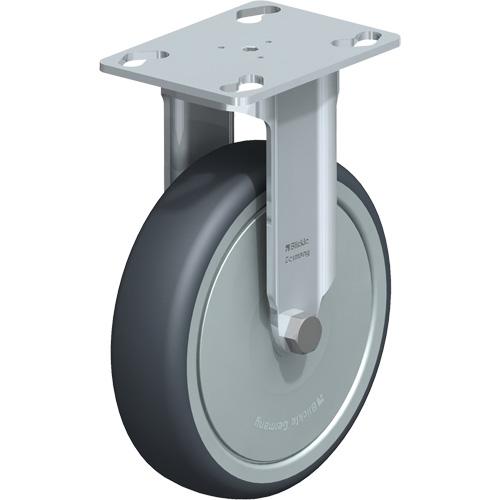

Caster - 5" (127 mm), 220 lbs. (100 kg.), Thermoplastic Rubber, Rigid, Steel, 1-1/4" (31.75 mm), 2-3/4" x 1-3/4" (70 mm x 44 mm), 5/16" (7.93 mm), 2-1/2" x 3-1/2" (64 mm x 89 mm), Ball, 6.25"

Caster – 5″ (127 mm), 220 lbs. (100 kg.), Thermoplastic Rubber, Rigid, Steel, 1-1/4″ (31.75 mm), 2-3/4″ x 1-3/4″ (70 mm x 44 mm), 5/16″ (7.93 mm), 2-1/2″ x 3-1/2″ (64 mm x 89 mm), Ball, 6.25″

SKU 010-LPO355 Category Brand:

$44.00 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Heavy-duty double swivel raceway
  • Grey thermoplastic rubber is non-marking and includes synthetic tread guards to protect roller bearings
  • Durable zinc-plated pressed steel assembly for durability

Additional information

Weight 0.590576784 kg
Dimensions 12.6997968 × 16.002000000000002 × 6.8580000000000005 cm
Manufacturer Model

BKPA-TPA 126KF
Wheel Diameter

5" (127 mm)
Capacity

220 lbs. (100 kg.)
Wheel Material

Thermoplastic Rubber
Caster Type

Rigid
Frame Material

Steel
Tread Width

1-1/4" (31.75 mm)
Bolt Hole Spacing

2-3/4" x 1-3/4" (70 mm x 44 mm)
Bolt Hole Size

5/16" (7.93 mm)
Plate Size

2-1/2" x 3-1/2" (64 mm x 89 mm)
Bearing Type

Ball
Overall Height

6.25"
Brake Type

Top Locking
