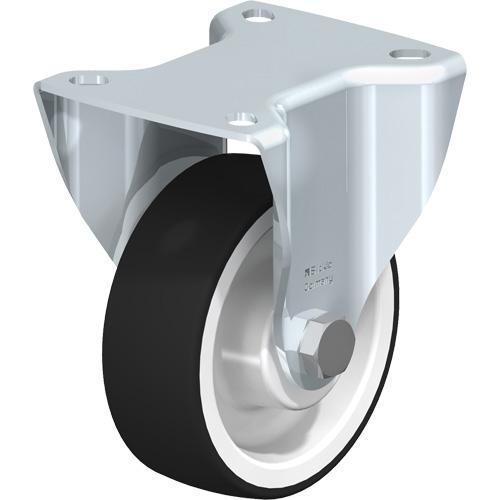

Caster - 4" (101.6 mm), 440 lbs. (199.58 kg.), Polyurethane, Rigid, Steel, 1-3/8" (35 mm), 3-1/8" x 2-3/8" (80 mm x 60 mm), 3/8" (9.52 mm), 3-15/16" x 3-3/8" (100 mm x 85 mm), Natural White, Roller

Caster – 4″ (101.6 mm), 440 lbs. (199.58 kg.), Polyurethane, Rigid, Steel, 1-3/8″ (35 mm), 3-1/8″ x 2-3/8″ (80 mm x 60 mm), 3/8″ (9.52 mm), 3-15/16″ x 3-3/8″ (100 mm x 85 mm), Natural White, Roller

SKU 010-LPQ111 Category Brand:

$62.27 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Pressed steel fixed caster, medium heavy duty brackets, with top plate fitting
  • Thermoplastic polyurethane tread, with heavy nylon wheel centre
  • Bracket made of pressed steel
  • Bolted wheel axle
  • Zinc-plated, blue-passivated, Cr6-free

Additional information

Weight 0.907184 kg
Dimensions 15.24 × 9.144 × 12.192 cm
Manufacturer Model

BK-POTH 100R-1
Wheel Diameter

4" (101.6 mm)
Capacity

440 lbs. (199.58 kg.)
Wheel Material

Polyurethane
Caster Type

Rigid
Frame Material

Steel
Tread Width

1-3/8" (35 mm)
Bolt Hole Spacing

3-1/8" x 2-3/8" (80 mm x 60 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

3-15/16" x 3-3/8" (100 mm x 85 mm)
Wheel Colour

Natural White
Bearing Type

Roller
Shore Hardness

94° Shore A
