Caster - 5" (127 mm), 330 lbs. (150 kg.), Heat-Resistant Thermoplastic, Rigid, Steel, 1-9/16" (40 mm), 3-1/8" x 2-3/8" (80 mm x 60 mm), 3/8" (9.52 mm), 3-15/16" x 3-3/8" (100 mm x 85 mm), Dark Grey, Plain Bore

Caster – 5″ (127 mm), 330 lbs. (150 kg.), Heat-Resistant Thermoplastic, Rigid, Steel, 1-9/16″ (40 mm), 3-1/8″ x 2-3/8″ (80 mm x 60 mm), 3/8″ (9.52 mm), 3-15/16″ x 3-3/8″ (100 mm x 85 mm), Dark Grey, Plain Bore

SKU 010-LPQ127 Category Brand:

$94.82 / Each

Available on backorder

Available on backorder

Add to quote

Description

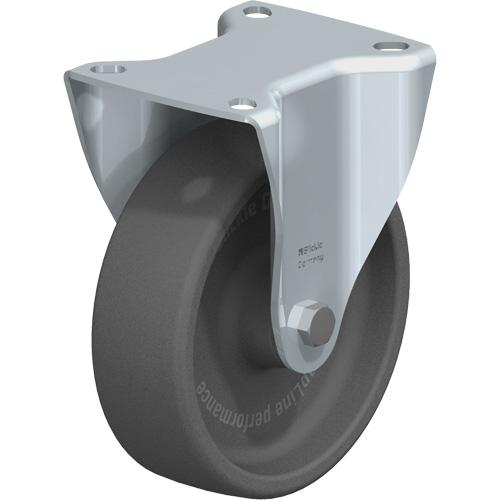

  • Heat-resistant pressed steel fixed caster with top plate fitting
  • Heat-resistant, thermoplastic Blickle TempLine® Performance wheel
  • Bracket made of pressed steel
  • Bolted wheel axle
  • Zinc-plated, blue-passivated, Cr6-free

Additional information

Weight 0.907184 kg
Dimensions 15.24 × 9.144 × 12.192 cm
Manufacturer Model

B-POHI 125G
Wheel Diameter

5" (127 mm)
Capacity

330 lbs. (150 kg.)
Wheel Material

Heat-Resistant Thermoplastic
Caster Type

Rigid
Frame Material

Steel
Tread Width

1-9/16" (40 mm)
Bolt Hole Spacing

3-1/8" x 2-3/8" (80 mm x 60 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

3-15/16" x 3-3/8" (100 mm x 85 mm)
Wheel Colour

Dark Grey
Bearing Type

Plain Bore
Shore Hardness

85° Shore D
