Caster - 6-5/16" (160.3375 mm), 880 lbs. (400 kg.), Polyurethane, Swivel with Brake, Steel, 1-3/4" (44.5 mm), 4-1/8" x 3" (105 mm x 76 mm), 7/16" (11 mm), 5-1/2" x 4-1/3" (140 mm x 110 mm), Natural White

Caster – 6-5/16″ (160.3375 mm), 880 lbs. (400 kg.), Polyurethane, Swivel with Brake, Steel, 1-3/4″ (44.5 mm), 4-1/8″ x 3″ (105 mm x 76 mm), 7/16″ (11 mm), 5-1/2″ x 4-1/3″ (140 mm x 110 mm), Natural White

SKU 010-LPQ241 Category Brand:

$284.55 / Each

Available on backorder

Available on backorder

Add to quote

Description

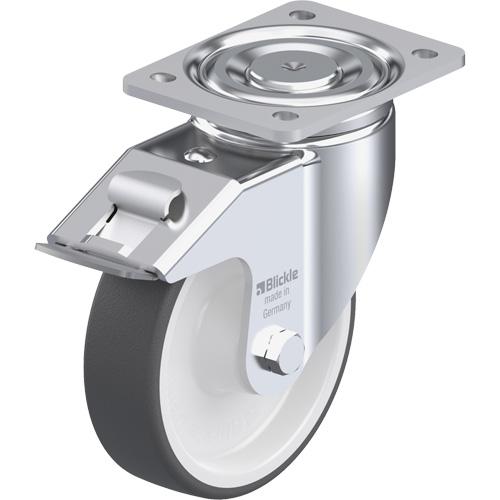

  • Pressed steel swivel heavy duty caster, with top plate fitting
  • Thermoplastic polyurethane tread, with heavy nylon wheel centre
  • Bracket made of heavy pressed steel, with heavy fork and top plate, very strong bolted and secured central kingpin, double ball bearing in the swivel head
  • Bolted wheel axle
  • Zinc-plated, blue-passivated, Cr6-free

Additional information

Weight 0.907184 kg
Dimensions 15.24 × 9.144 × 12.192 cm
Manufacturer Model

LH-POTH 160R-FI
Wheel Diameter

6-5/16" (160.3375 mm)
Capacity

880 lbs. (400 kg.)
Wheel Material

Polyurethane
Caster Type

Swivel with Brake
Frame Material

Steel
Tread Width

1-3/4" (44.5 mm)
Bolt Hole Spacing

4-1/8" x 3" (105 mm x 76 mm)
Bolt Hole Size

7/16" (11 mm)
Plate Size

5-1/2" x 4-1/3" (140 mm x 110 mm)
Wheel Colour

Natural White
Bearing Type

Roller
Shore Hardness

94° Shore A
