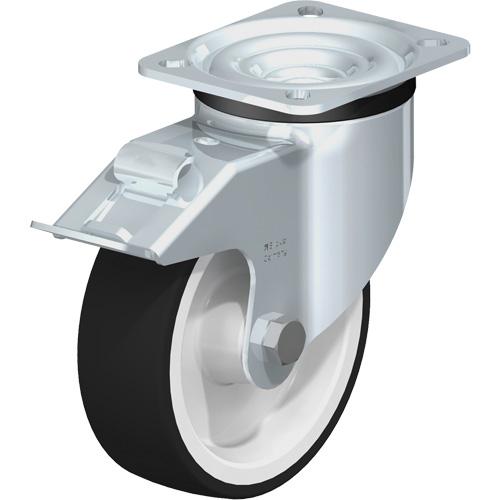

Caster - 5" (127 mm), 770 lbs. (349 kg.), Polyurethane, Swivel with Brake, Steel, 1-9/16" (40 mm), 3-1/8" x 2-3/8" (80 mm x 60 mm), 3/8" (9.52 mm), 3-15/16" x 3-3/8" (100 mm x 85 mm), Natural White, Roller

Caster – 5″ (127 mm), 770 lbs. (349 kg.), Polyurethane, Swivel with Brake, Steel, 1-9/16″ (40 mm), 3-1/8″ x 2-3/8″ (80 mm x 60 mm), 3/8″ (9.52 mm), 3-15/16″ x 3-3/8″ (100 mm x 85 mm), Natural White, Roller

SKU 010-LPQ267 Category Brand:

$108.15 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Pressed steel swivel caster, medium heavy duty brackets, with top plate fitting
  • Thermoplastic polyurethane tread, with heavy nylon wheel centre
  • Bracket made of heavy pressed steel, swivel bracket with double ball bearing in the swivel head, swivel head seals
  • Bolted wheel axle
  • Zinc-plated, blue-passivated, Cr6-free

Additional information

Weight 0.907184 kg
Dimensions 15.24 × 9.144 × 12.192 cm
Manufacturer Model

LK-POTH 125R-1-FI
Wheel Diameter

5" (127 mm)
Capacity

770 lbs. (349 kg.)
Wheel Material

Polyurethane
Caster Type

Swivel with Brake
Frame Material

Steel
Tread Width

1-9/16" (40 mm)
Bolt Hole Spacing

3-1/8" x 2-3/8" (80 mm x 60 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

3-15/16" x 3-3/8" (100 mm x 85 mm)
Wheel Colour

Natural White
Bearing Type

Roller
Shore Hardness

94° Shore A
