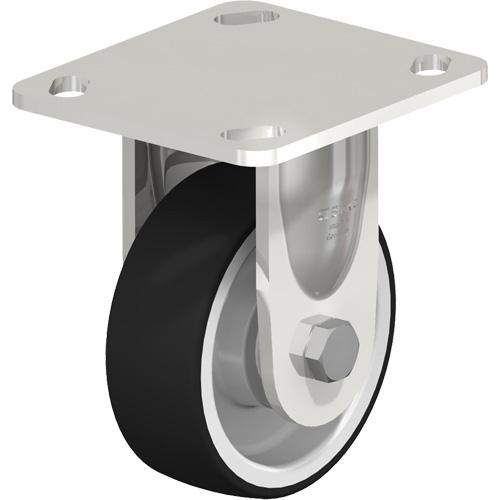

Caster - 4" (101.6 mm), 330 lbs. (150 kg.), Rubber, Rigid, Stainless Steel, 1-1/2" (38 mm), 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm), 3/8" (9.52 mm), 4" x 4-1/2" (102 mm x 114 mm), 65° Shore A

Caster – 4″ (101.6 mm), 330 lbs. (150 kg.), Rubber, Rigid, Stainless Steel, 1-1/2″ (38 mm), 2-5/8″ x 3-5/8″ (67 mm x 92 mm) – 3″ x 3″ (76 mm x 76 mm), 3/8″ (9.52 mm), 4″ x 4-1/2″ (102 mm x 114 mm), 65° Shore A

SKU 010-LPR043 Category Brand:

$134.40 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Pressed steel rigid caster
  • Medium heavy duty rigs, with top plate fitting
  • High operational comfort and low-noise operation
  • Low rolling and swivel resistance for smooth running performance
  • Operating temperature: -15° F to +175° F

Additional information

Weight 2.1772416 kg
Dimensions 18.288 × 12.192 × 18.288 cm
Manufacturer Model

BKSX-POEV 100XKA-14-SG
Wheel Diameter

4" (101.6 mm)
Capacity

330 lbs. (150 kg.)
Wheel Material

Rubber
Caster Type

Rigid
Frame Material

Stainless Steel
Tread Width

1-1/2" (38 mm)
Bolt Hole Spacing

2-5/8" x 3-5/8" (67 mm x 92 mm) – 3" x 3" (76 mm x 76 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

4" x 4-1/2" (102 mm x 114 mm)
Tread & Tire Hardness

65° Shore A
Bearing Type

Ball Bearing
Total Height

5-1/8"
