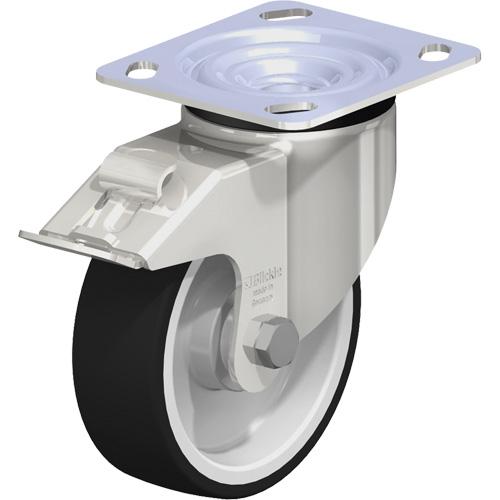

Caster - 5" (127 mm), 770 lbs. (349 kg.), Thermoplastic Polyurethane, Swivel with Brake, Stainless Steel, 1-9/16" (40 mm), 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm), 3/8" (9.52 mm), 4" x 4-1/2" (102 mm x 114 mm)

Caster – 5″ (127 mm), 770 lbs. (349 kg.), Thermoplastic Polyurethane, Swivel with Brake, Stainless Steel, 1-9/16″ (40 mm), 2-5/8″ x 3-5/8″ (67 mm x 92 mm) – 3″ x 3″ (76 mm x 76 mm), 3/8″ (9.52 mm), 4″ x 4-1/2″ (102 mm x 114 mm)

SKU 010-LPR046 Category Brand:

$261.45 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Swivel rig with double ball bearing in the swivel head
  • Minimal swivel head play and smooth rolling characteristics
  • Medium heavy duty rigs, with top plate fitting
  • High operational comfort and low-noise operation
  • Low rolling and swivel resistance for smooth running performance
  • Operating temperature: -15° F to +160° F

Additional information

Weight 2.9029888 kg
Dimensions 24.384 × 12.192 × 24.384 cm
Manufacturer Model

LKX-POTH 125KAD-14-FI
Wheel Diameter

5" (127 mm)
Capacity

770 lbs. (349 kg.)
Wheel Material

Thermoplastic Polyurethane
Caster Type

Swivel with Brake
Frame Material

Stainless Steel
Tread Width

1-9/16" (40 mm)
Bolt Hole Spacing

2-5/8" x 3-5/8" (67 mm x 92 mm) – 3" x 3" (76 mm x 76 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

4" x 4-1/2" (102 mm x 114 mm)
Tread & Tire Hardness

94° Shore A
Bearing Type

Ball Bearing
Total Height

6-1/8"
