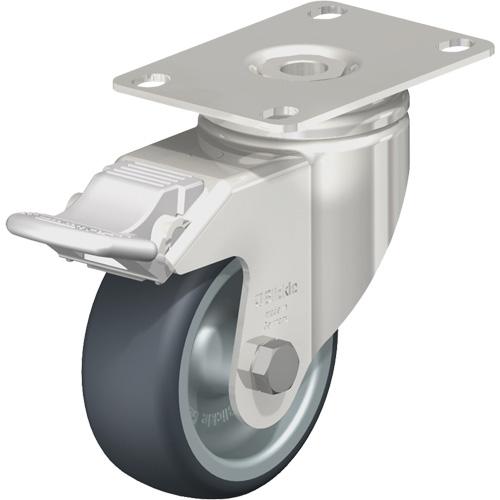

Caster - 3-1/8" (79.5 mm), 220 lbs. (100 kg.), Thermoplastic Rubber-Elastomer, Swivel with Brake, Stainless Steel, 1-1/4" (31.75 mm), 1-3/4" x 2-13/16" (44 mm x 71 mm) - 1-3/4" x 3-1/16" (44 mm 78 mm)

Caster – 3-1/8″ (79.5 mm), 220 lbs. (100 kg.), Thermoplastic Rubber-Elastomer, Swivel with Brake, Stainless Steel, 1-1/4″ (31.75 mm), 1-3/4″ x 2-13/16″ (44 mm x 71 mm) – 1-3/4″ x 3-1/16″ (44 mm 78 mm)

SKU 010-LPR979 Category Brand:

$85.58 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Swivel rig with double ball bearing in the swivel head
  • Minimal swivel head play and smooth rolling characteristics
  • Medium heavy duty rigs, with top plate fitting
  • Low rolling and swivel resistance for smooth running performance
  • High operational comfort and low-noise operation
  • Operating temperature: -4° F to +140° F

Additional information

Weight 1.814368 kg
Dimensions 15.24 × 12.192 × 15.24 cm
Manufacturer Model

LKPXA-TPA 80G-12-FI
Wheel Diameter

3-1/8" (79.5 mm)
Capacity

220 lbs. (100 kg.)
Wheel Material

Thermoplastic Rubber-Elastomer
Caster Type

Swivel with Brake
Frame Material

Stainless Steel
Tread Width

1-1/4" (31.75 mm)
Bolt Hole Spacing

1-3/4" x 2-13/16" (44 mm x 71 mm) – 1-3/4" x 3-1/16" (44 mm 78 mm)
Bolt Hole Size

5/16" (7.93 mm)
Plate Size

2-1/2" x 3-5/8" (64 mm x 92 mm)
Tread & Tire Hardness

85° Shore A
Bearing Type

Plain Bore
Total Height

4-3/8"
