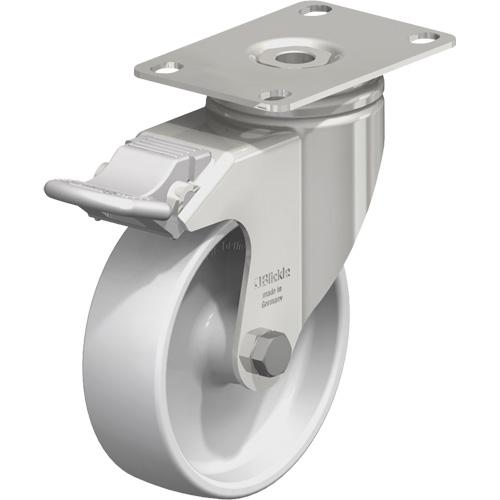

Caster - 4" (101.6 mm), 265 lbs. (120 kg.), Nylon, Swivel with Brake, Stainless Steel, 1-1/4" (31.75 mm), 1-3/4" x 2-13/16" (44 mm x 71 mm) - 1-3/4" x 3-1/16" (44 mm 78 mm), 5/16" (7.93 mm), 2-1/2" x 3-5/8" (64 mm x 92 mm)

Caster – 4″ (101.6 mm), 265 lbs. (120 kg.), Nylon, Swivel with Brake, Stainless Steel, 1-1/4″ (31.75 mm), 1-3/4″ x 2-13/16″ (44 mm x 71 mm) – 1-3/4″ x 3-1/16″ (44 mm 78 mm), 5/16″ (7.93 mm), 2-1/2″ x 3-5/8″ (64 mm x 92 mm)

SKU 010-LPR982 Category Brand:

$107.10 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Swivel rig with double ball bearing in the swivel head
  • Minimal swivel head play and smooth rolling characteristics
  • Medium heavy duty rigs, with top plate fitting
  • Low rolling and swivel resistance for smooth running performance
  • High chemical resistance to many aggressive substances
  • Operating temperature: -15° F to +175° F

Additional information

Weight 2.1772416 kg
Dimensions 18.288 × 12.192 × 18.288 cm
Manufacturer Model

LKPXA-PO 101G-12-FI
Wheel Diameter

4" (101.6 mm)
Capacity

265 lbs. (120 kg.)
Wheel Material

Nylon
Caster Type

Swivel with Brake
Frame Material

Stainless Steel
Tread Width

1-1/4" (31.75 mm)
Bolt Hole Spacing

1-3/4" x 2-13/16" (44 mm x 71 mm) – 1-3/4" x 3-1/16" (44 mm 78 mm)
Bolt Hole Size

5/16" (7.93 mm)
Plate Size

2-1/2" x 3-5/8" (64 mm x 92 mm)
Tread & Tire Hardness

85° Shore A
Bearing Type

Plain Bore
Total Height

5-3/8"
