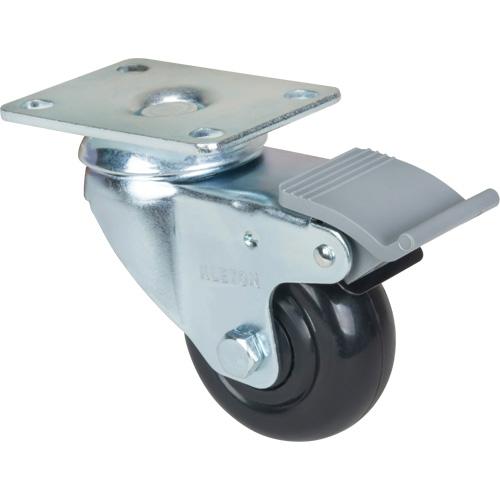

Caster - 3" (76.2 mm), 4" (101.6 mm), 5" (127 mm), 250 lbs. (113.4 kg), Polyolefin, Swivel with Brake, Steel, 1-1/4" (31.75 mm), 2-3/4" x 1-3/4" (70 mm x 44 mm), 5/16" (7.93 mm), 2-5/8" x 3-3/4" (67 mm x 95 mm)

Caster – 3″ (76.2 mm), 4″ (101.6 mm), 5″ (127 mm), 250 lbs. (113.4 kg), Polyolefin, Swivel with Brake, Steel, 1-1/4″ (31.75 mm), 2-3/4″ x 1-3/4″ (70 mm x 44 mm), 5/16″ (7.93 mm), 2-5/8″ x 3-3/4″ (67 mm x 95 mm)

SKU 010-LPS801 Category Brand:

Price range: $14.44 through $17.06 / Each

Available on backorder

Add to quote

Description

  • Rolls easily and quietly on all floors
  • Lightweight and economical
  • Non-marking, easy to maintain, steam cleanable
  • High impact strength
  • Superior resistance to most oils, chemicals, grease and acids
  • Applications: For food service equipment, mobile warehouse equipment, factories and abusive environments
  • Nylon total locking brake locks the wheel and keeps the swivel from turning

Additional information

Weight 0.8255374400000001 kg
Dimensions 16.5101016 × 11.43 × 6.3498984 cm
Wheel Diameter

3" (76.2 mm), 4" (101.6 mm), 5" (127 mm)
Capacity

250 lbs. (113.4 kg)
Wheel Material

Polyolefin
Caster Type

Swivel with Brake
Frame Material

Steel
Tread Width

1-1/4" (31.75 mm)
Bolt Hole Spacing

2-3/4" x 1-3/4" (70 mm x 44 mm)
Bolt Hole Size

5/16" (7.93 mm)
Plate Size

2-5/8" x 3-3/4" (67 mm x 95 mm)
Overall Height

4-1/2"
Manufacturer's Warranty

1 Year Limited
