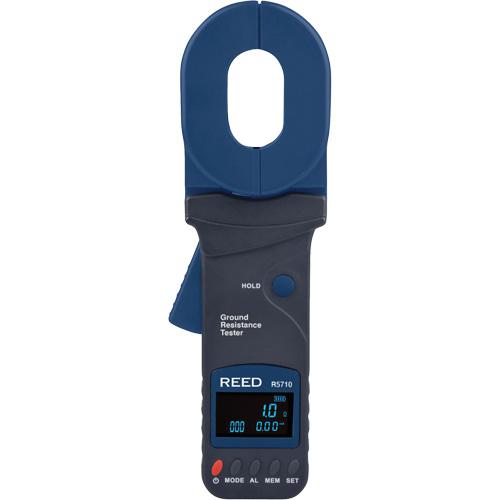

Clamp-On Ground Resistance Tester – Digital, 0.010 to 0.099Ω, 0.10 to 0.99Ω, 1.0 to 49.9Ω, 50.0 to 99.5Ω, 100 to 199Ω, 200 to 395Ω, 400 to 590Ω, 600 to 880Ω, 900 to 1200Ω, 0 to 9mA, 10 to 99mA, 100 to 299mA

SKU 010-LLF187 Category Clamp-On Ground Resistance Testers Brand: Reed Instruments

$1,674.75 / Each

Available on backorder

Description

Enables non-contact measurements of ground conductors without the need for auxiliary ground spikes
Auto-ranging ground resistance and leakage current measurements
0.001Ω resolution for low resistance measurements
9999-count EBTN display
Internal memory capable of storing up to 300 measurements, allowing for a user to set alarm thresholds
Features a double molded conductor clamp for added protection
User adjustable alarms
Data hold function
1.26" (32mm) jaw size for large ground rods
Low battery indicator and auto shut-off

Weight	1.1793392 kg
Dimensions	28.346400000000003 × 8.382000000000001 × 5.4864 cm
Manufacturer Model	R5710
Display Type	Digital
Ground Resistance Ranges	0.010 to 0.099Ω, 0.10 to 0.99Ω, 1.0 to 49.9Ω, 50.0 to 99.5Ω, 100 to 199Ω, 200 to 395Ω, 400 to 590Ω, 600 to 880Ω, 900 to 1200Ω
Current Ranges	0 to 9mA, 10 to 99mA, 100 to 299mA, 0.30 to 2.99A, 3 to 9.9A, 10 to 20A
Sampling Time	0.5 Seconds
Power Supply	(4) AA Batteries
