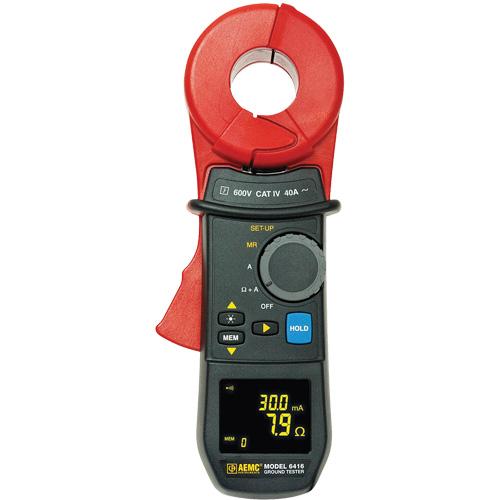

Clamp-On Ground Resistance Tester – Digital, 0.01 – 1500Ω, 0.2 – 0.999 mA, 1 µA, 35 mm

Description

• Employs stakeless ground loop testing and non-intrusive leakage current measurement, making it ideal for system troubleshooting in commercial, industrial, and utility applications
• Take measurements without disconnecting or de-energizing the ground system under test
• Incorporates visible and audible alarms for dangerous voltage and current levels
• Compact and rugged, for easy use in small places and harsh environments
• Hig- sensitivity measurement function of leakage current flowing to ground or circulating in ground loops from 0.2mA to 40A
• Contact voltage indication warns of unsafe conditions
• Selectable test frequency improves accuracy in inductive environments
• Buzzer and noise icon alert user to presence of dangerous voltage and current levels
• Multi-function, bright yellow organic display (OLED)
• Data storage function with time-stamping allows up to 2000 measurements to be stored
• Displays battery life information at power-up
• Auto power-off function
• Rugged Lexan® head and body construction resists breakage
• Designed to EN61010-1, 600V Cat. IV safety standards
• Applications include ground electrode system resistance, bonding/continuity checks, cell tower grounding verification, and ground measurements on railroad signaling systems
• Includes: (1) Clamp-On ground resistance tester, (1) Hard carrying case, (1) Calibration loop, (4) 1.5V AA batteries
