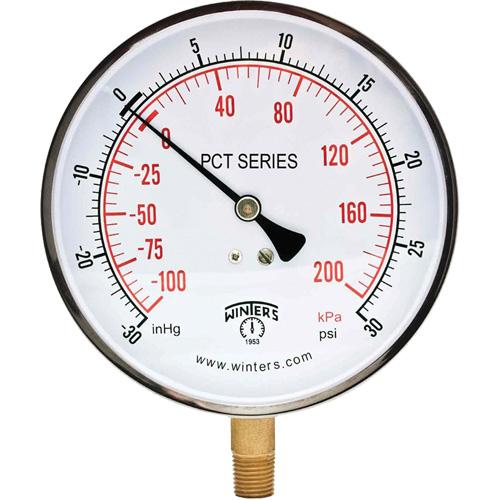

Contractor Pressure Gauge - 4-1/2", 30 - 0 - 30 psi, Bottom Mount, Analogue, 1/4" NPT, ±1% ANSI/ASME Grade 1A, 5 Years, IP52

Contractor Pressure Gauge – 4-1/2″, 30 – 0 – 30 psi, Bottom Mount, Analogue, 1/4″ NPT, ±1% ANSI/ASME Grade 1A, 5 Years, IP52

SKU 010-LKQ655 Category Brand:

$82.73 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Economical stainless steel case gauge with brass wetted parts
  • Zero adjustment screw
  • Restricted orifice
  • ASME B40.100 compliant and CRN registered
  • Also measures in kilopascals (kPa)
  • Applications include commercial air, water and steam services (with syphon), and more

Additional information

Weight 0.37285262399999997 kg
Dimensions 13.9698984 × 3.81 × 13.9698984 cm
Manufacturer Model

PCT329
Dial Diameter

4-1/2"
Pressure Range

30 – 0 – 30 psi
Connection

Bottom Mount
Dial Type

Analogue
Connection Thread

1/4" NPT
Accuracy

±1% ANSI/ASME Grade 1A
Manufacturer's Warranty

5 Years
IP Rating

IP52
