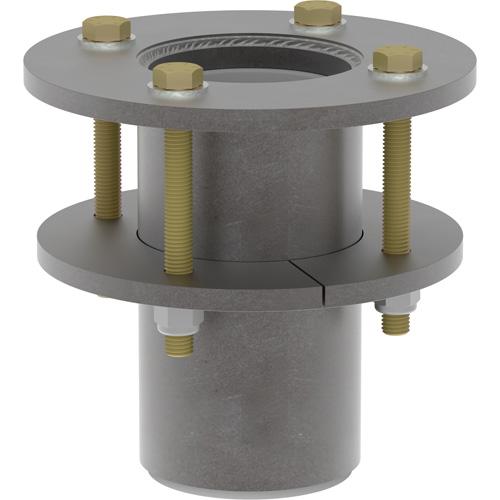

DBI-SALA® Confined Space Deck Mount Base, Stainless Steel – Base, 2, EN 795 Type A, AS/NZS 5532, CEN/TS 16415 Type A, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, EN 1496:2006 (Clause 4.6), 4″ (10 cm)

SKU 010-LVKS581 Category Rescue Davit Arm Systems Brand: 3M

$2,591.40 / Each

Available on backorder

Description

Designed to be installed through and clamp to flooring ranging in thickness from 13mm (.51 in) to 90mm (3.54") using included mounting hardware
Combines with 3M™ DBI-SALA® Davit Mast to form a confined space rescue and work support system
Mounts directly onto horizontal work surfaces
360 degree davit mast rotation
Thermoplastic davit mast sleeve liner reduces friction and aids in davit rotation
Permanent installation
Allows for two users to connect to the system (one user operating the davit and one entering the confined space)

Weight	14.24497057752 kg
Dimensions	25.3998984 × 25.3998984 × 22.8999288 cm
Manufacturer Model	8000100
Part	Base
Maximum Number of Users	2
Specifications Met	EN 795 Type A, AS/NZS 5532, CEN/TS 16415 Type A, 29 CFR OSHA 1910.140, 29 CFR OSHA 1926.502, EN 1496:2006 (Clause 4.6)
Mast/Sleeve Diameter	4" (10 cm)
Weight Capacity	750 lbs.
