Drum Tumbler & Control Panel – 55 US gal. (45 Imperial Gal.), Variable Speed, 115 V, 1 HP, 800 lbs., 400 lbs., 1, 18″ to 23.5″, 29″ to 37″, Included, 800 lbs. (363 kg) full drum

Description

Mix ingredients right inside a closed drum

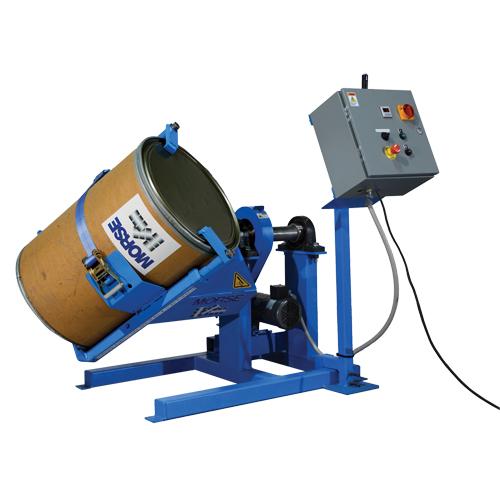

Morse Drum Tumblers rotate a drum "corner-over-corner" to thoroughly mix drum contents
Mix plastic, steel or fiber 45 imp. gal. / 55 US gal. drums
Agitate drum contents without even opening it
Incorporate settled ingredients
Eliminate sediment at the bottom of a drum
14 RPM, 1 HP or Variable Speed 2 to 20 RPM with Morse Control Package (included)
Capacity: 800 lbs. (363 kg) full drum, 400 lbs. (181 kg) half-full drum
Includes Control Mast and Control Box
Timer adjusts from a few seconds to 16 hours
Start and Stop Buttons
24V DC Control Supply
Wire terminals for external connection of safety interlock switch
115 V Control Panel
Features extended product life and recyclable packaging

Weight	113.398 kg
Dimensions	121.92 × 121.92 × 121.92 cm
Drum Size Capacity	55 US gal. (45 Imperial Gal.)
Variable Speed / Fixed Speed	Variable Speed
Motor Voltage	115 V
Motor HP	1 HP
Liquid Load Capacity	800 lbs.
Dry Load Capacity	400 lbs.
No. of Drums	1
Drum Diameter Clearance	18" to 23.5"
Drum Height Clearance	29" to 37"
Control Panel Included/Not Included	Included
Capacity	800 lbs. (363 kg) full drum, 400 lbs. (181 kg) half-full drum
