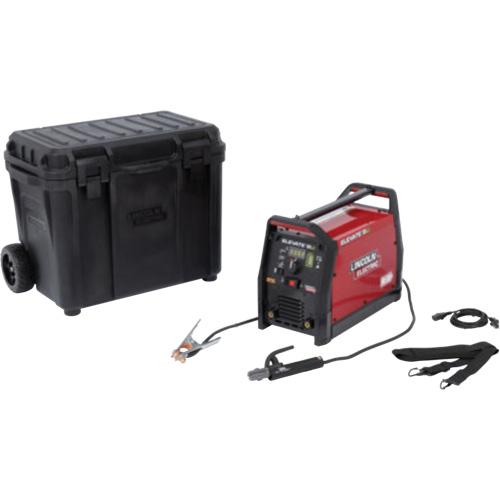

Elevate™ SLi Battery Powered Welder with Rolling Case Package – 120 V, 1 Ph, 60 Hz, Elevate™ SLi Battery Powered Welder; 200 Amp Industrial Electrode Holder with Cable 12.5 ft (3.8 m) & Twist Mate™ (Dinse 10-25) Connector (K5612-1); Work Lead 12.5 ft (3.8 m) with Ground Clamp & Twist Mate™ (Dinse 10-25) Connector (K5482-1); Adjustable Shoulder Strap (KP5656-1); 120V Input Cord 7.5 ft (2m) (KP5655-1); Elevate™ SLi Battery Powered Welder Rolling Machine Case (K5548-1)

Description

Provides a powerful 145A output for highly efficient welding
Ensures easy starts, a smooth arc, low spatter, and optimal bead appearance
Supports a wide range of welding rods, including 6010 and 7018 up to 5/32 in, and features Touch Start TIG functionality
Hot Start and Arc Force can be adjusted to improve electrode starting and control penetration profile
Designed for easy transportation, weighing only 33 lbs. and featuring an adjustable shoulder strap for added convenience
Easily maneuverable on job sites and does not require extra-long weld cables or a generator, making it an excellent option for remote work locations
Employs Lithium Iron Phosphate technology to offer extended battery life, enabling the welding of up to 21 sticks on a single charge
The integrated internal charging system can charge in 60 minutes using 120V input power, eliminating the need for an external charger
Built to withstand challenging welding environments with an IP23S rating and fan as-needed circuitry, ensuring long-lasting performance
Backed by a 3-year warranty from Lincoln Electric, providing peace of mind and reliable support for your investment

Weight	20.41164 kg
Dimensions	44.449898399999995 × 64.77 × 62.2301016 cm
Manufacturer Model	K5622-1
Voltage Input Power	120 V
Phase Input Power	1 Ph
Hertz Input Power	60 Hz
Includes	Elevate™ SLi Battery Powered Welder; 200 Amp Industrial Electrode Holder with Cable 12.5 ft (3.8 m) & Twist Mate™ (Dinse 10-25) Connector (K5612-1); Work Lead 12.5 ft (3.8 m) with Ground Clamp & Twist Mate™ (Dinse 10-25) Connector (K5482-1); Adjustable Shoulder Strap (KP5656-1); 120V Input Cord 7.5 ft (2m) (KP5655-1); Elevate™ SLi Battery Powered Welder Rolling Machine Case (K5548-1)
Dimensions	14" H x 9.1" W x 18.3" D (356 mm x 231 mm x 465 mm)
Weight	33 lbs. (15 kg)
Machines Processes	Stick (SMAW), TIG (GTAW)
