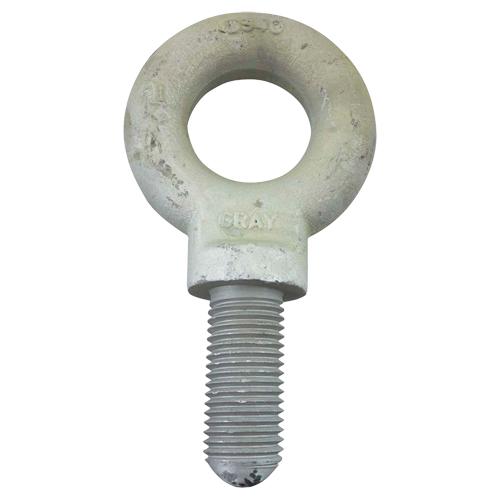

Eye Bolt - 21000 lbs. (10.5 tons), Galvanized, 4-7/16", 3", With Shoulder, Fully Threaded, 1-1/4" - 7", 2/16", 4-7/16"

Eye Bolt – 21000 lbs. (10.5 tons), Galvanized, 4-7/16″, 3″, With Shoulder, Fully Threaded, 1-1/4″ – 7″, 2/16″, 4-7/16″

SKU 010-LOX913 Category Brand:

$63.42 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Never apply loads greater than rated capacity
  • Safety Warning: Load should never be applied at more than a 45 degree angle from the bolt centerline
  • Safety Warning: The rated capacity is reduced to 25% when the load is applied at a 45 degree angle to the eyebolt centerline

Additional information

Weight 2.1318824 kg
Dimensions 22.86 × 12.6997968 × 5.05968 cm
Manufacturer Model

88740
Working Load Limit

21000 lbs. (10.5 tons)
Finish

Galvanized
Eye Diameter

4-7/16"
Shank Length

3"
Body Style

With Shoulder
Shank Threading

Fully Threaded
Thread size, UNC-2A

1-1/4" – 7"
I.D. Eye

2/16"
Weight

4.7 lbs.
O.D. Eye

4-7/16"
