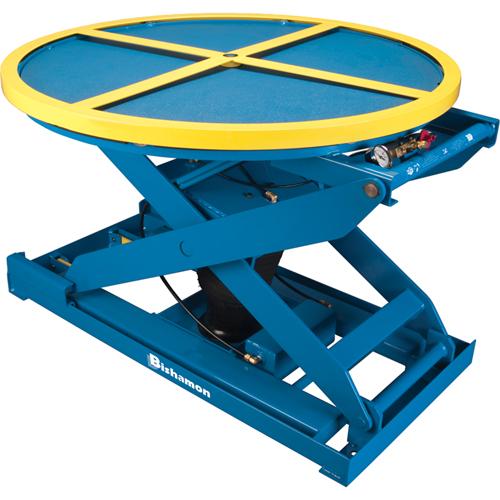

EZ Loader Pallet Lifters – 43″ L x 43″ W, 4000 lbs., 30.5″, 10.5″, Steel, 250, 135 PSI, 3500

Description

Minimizes bending and lifting and reduces extra movement around the pallet
The EZ loader is weight sensitive: it raises and lowers the pallet as the load weight changes, keeping the top of the load at a convenient working height
Rotating top minimizes walking or reaching during the loading process
Allows on or off loading to be done from the near side and at a convenient height
3-position capacity, adjustable without changing air pressure
Designed to work in conjunction with Bishamon's Unilift custom easy-to-read air gauge
Air pressure capacity adjustment: 10-60 PSI
Shop air requirements: Clean dry air 60 PSI
Heavy-duty, structural steel frame is 24 1/3" x 49" at base: turntable is 43" in diameter; * Inquire about stainless steel EZ loader pallet lifters

Weight	226.796 kg
Dimensions	129.54 × 31.241999999999997 × 113.02989840000001 cm
Manufacturer Model	EZ LOADER
Platform Dimensions	43" L x 43" W
Capacity	4000 lbs.
Raised Height	30.5"
Lowered Height	10.5"
Frame Material	Steel
Min. Self Leveling Capacity lbs.	250
Maximum internal air pressure	135 PSI
Max. Self Leveling Capacity lbs.	3500
