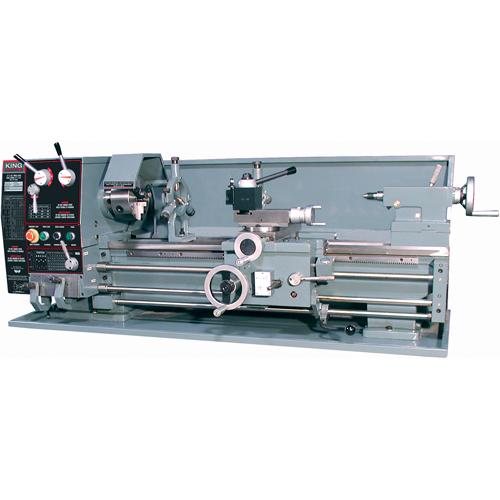

Gearhead Metal Lathe with Taper Attachment & Stand - 36", 12", 18", 1-1/2", 28", 65", 28", 7-1/4", #5 Morse, #3 Morse, 7-1/4"

Gearhead Metal Lathe with Taper Attachment & Stand – 36″, 12″, 18″, 1-1/2″, 28″, 65″, 28″, 7-1/4″, #5 Morse, #3 Morse, 7-1/4″

SKU 010-LWPD324 Category Brand:

$10,064.25 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Safety guard with limit switch protection
  • Line interruption switch system needs a restart after a power failure
  • Powerful 1.5 HP motor
  • Guideway and gears in headstock are all hardened and precision ground
  • Includes: 6"-3 jaw chuck, 8"-4 jaw chuck, Imperial & metric gears, Quick change tool post, Steady rest, Follow rest, 10" DI-4 cam lock face plate, Thread chasing dial indicator, MT#3 dead centre, MT#3 arbor taper, 1/2" drill chuck, Full length splash guard, Tool box, Chuck keys, Hex keys, Stand

Additional information

Weight 272.1552 kg
Dimensions 60.96 × 60.96 × 182.88 cm
Manufacturer Model

KC-1236ML/KM-053/SS1236
Distance Between Centers

36"
Swing Over Bed

12"
Swing Over Gap

18"
Spindle Bore

1-1/2"
Overall Width

28"
Overall Length

65"
Overall Height

28"
Swing Over Cross Slide

7-1/4"
Taper in Headstock

#5 Morse
Taper in Tailstock

#3 Morse
Width of Bedways

7-1/4"
