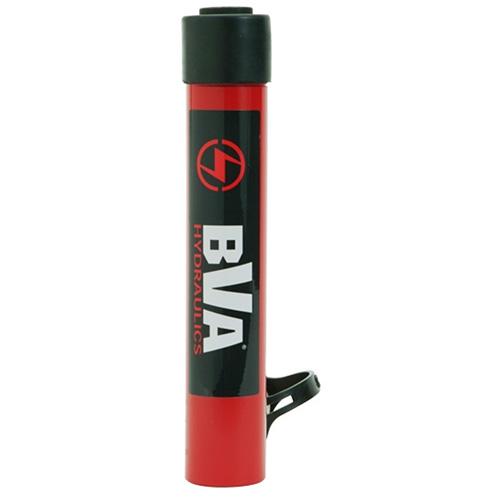

General Hydraulic Cylinder - 5 Ton(s), 5.08", 10000 PSI, 8-7/10", 13-39/50", Steel, 83.25 CC, 1.13", 1.5"

General Hydraulic Cylinder – 5 Ton(s), 5.08″, 10000 PSI, 8-7/10″, 13-39/50″, Steel, 83.25 CC, 1.13″, 1.5″

SKU 010-LIOX924 Category Brand:

$921.90 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufactured in a solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life
  • Standard hard chrome plated piston rod protects against corrosion and damage; one-piece aluminum alloy bearing protects against cylinder wall damage
  • Collar threads and base mounting holes are for fixturing
  • All BVA cylinders come equipped with CH38F high-flow coupler with a dust cap for better protection

Additional information

Weight 2.2362085599999997 kg
Dimensions 29.8956984 × 16.611600000000003 × 7.4928984 cm
Manufacturer Model

H0505
Capacity

5 Ton(s)
Stroke Length

5.08"
Operating Pressure

10000 PSI
Collapsed Height

8-7/10"
Extended Height

13-39/50"
Material

Steel
Oil Usage (Push)

83.25 CC
Cylinder Bore

1.13"
Outside Diameter

1.5"
