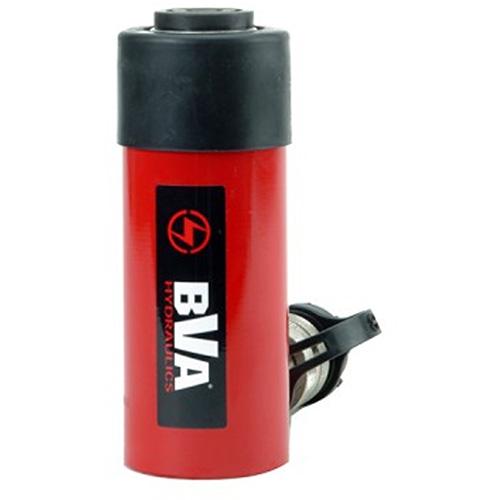

General Hydraulic Cylinder - 10 Ton(s), 2.01", 10000 PSI, 4-21/25", 6-17/20", Steel, 73.74 CC, 1.69", 2.26"

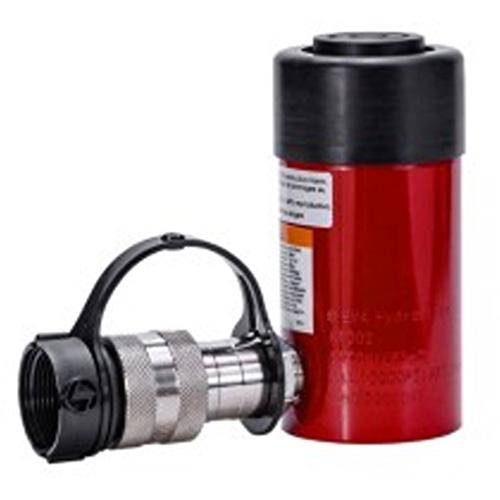

General Hydraulic Cylinder - 10 Ton(s), 2.01", 10000 PSI, 4-21/25", 6-17/20", Steel, 73.74 CC, 1.69", 2.26" - Image 2

General Hydraulic Cylinder – 10 Ton(s), 2.01″, 10000 PSI, 4-21/25″, 6-17/20″, Steel, 73.74 CC, 1.69″, 2.26″

SKU 010-LIOX925 Category Brand:

$988.05 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufactured in a solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life
  • Standard hard chrome plated piston rod protects against corrosion and damage; one-piece aluminum alloy bearing protects against cylinder wall damage
  • Collar threads and base mounting holes are for fixturing
  • All BVA cylinders come equipped with CH38F high-flow coupler with a dust cap for better protection

Additional information

Weight 2.4493968 kg
Dimensions 29.90088 × 16.5987984 × 7.5005184 cm
Manufacturer Model

H1002
Capacity

10 Ton(s)
Stroke Length

2.01"
Operating Pressure

10000 PSI
Collapsed Height

4-21/25"
Extended Height

6-17/20"
Material

Steel
Oil Usage (Push)

73.74 CC
Cylinder Bore

1.69"
Outside Diameter

2.26"

Related products

Related products

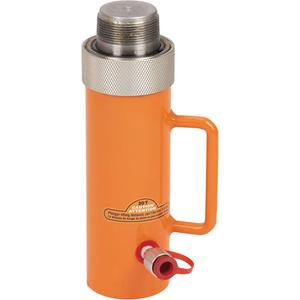

  • Hydraulic Rams - 20 Ton(s), 5.04", 11-1/10", 16", 2.36, 2.13, 5.14, 28.34mm / 1.1", 50mm / 2", 100.39mm / 4.0", 200mm / 7.9", 275.59mm / 10.9"
