General Hydraulic Cylinder - 10 Ton(s), 4.02", 10000 PSI, 6-17/20", 10-87/100", Steel, 147.48 CC, 1.69", 2.26"
General Hydraulic Cylinder - 10 Ton(s), 4.02", 10000 PSI, 6-17/20", 10-87/100", Steel, 147.48 CC, 1.69", 2.26" - Image 2

General Hydraulic Cylinder – 10 Ton(s), 4.02″, 10000 PSI, 6-17/20″, 10-87/100″, Steel, 147.48 CC, 1.69″, 2.26″

SKU 010-LIOX926 Category Brand:

$1,048.95 / Each

Available on backorder

Available on backorder

Add to quote

Description

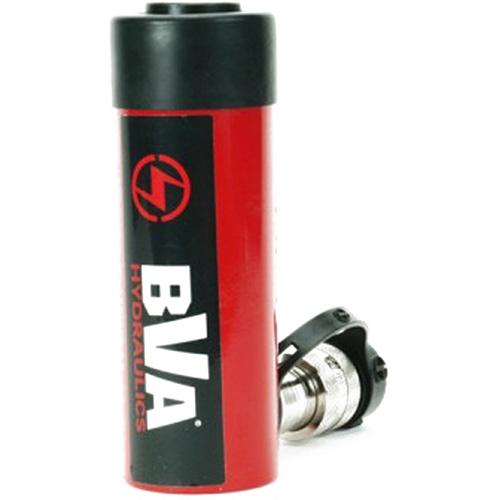

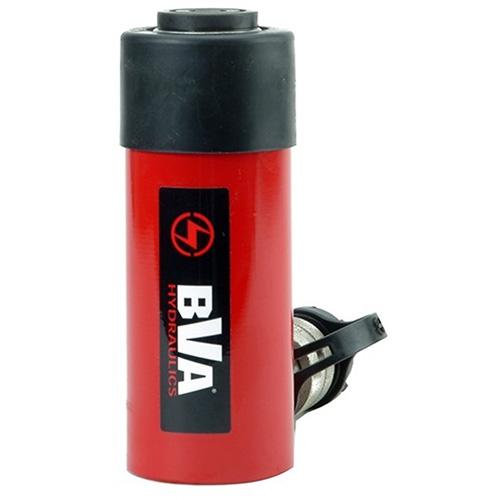

  • BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufactured in a solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life
  • Standard hard chrome plated piston rod protects against corrosion and damage; one-piece aluminum alloy bearing protects against cylinder wall damage
  • Collar threads and base mounting holes are for fixturing
  • All BVA cylinders come equipped with CH38F high-flow coupler with a dust cap for better protection

Additional information

Weight 3.2205032 kg
Dimensions 29.90088 × 16.5987984 × 7.5005184 cm
Manufacturer Model

H1004
Capacity

10 Ton(s)
Stroke Length

4.02"
Operating Pressure

10000 PSI
Collapsed Height

6-17/20"
Extended Height

10-87/100"
Material

Steel
Oil Usage (Push)

147.48 CC
Cylinder Bore

1.69"
Outside Diameter

2.26"

Related products

Related products

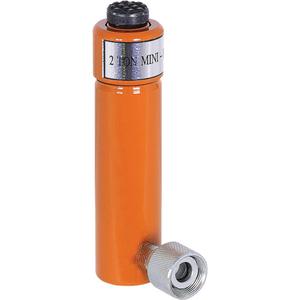

  • Hydraulic Rams - 2 Ton(s), 3", 4-7/8", 9-9/16"
