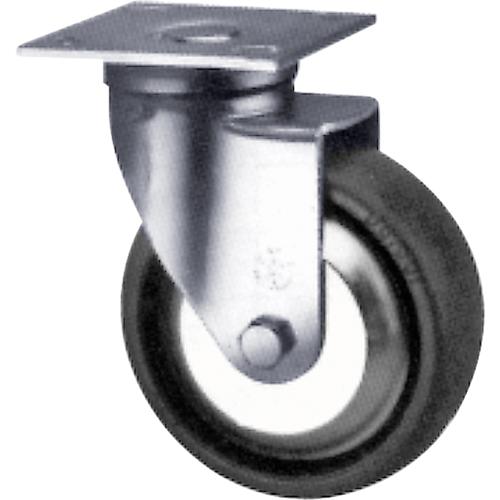

Heavy-Duty Caster - 8" (203.2 mm), 1000 lbs. (453.6 kg.), Solid Elastomer, Swivel, Steel, 2" (50.8 mm), 2-5/8" - 3" (67 mm x 76 mm) - 3" - 3-5/8" (76 mm - 92 mm), 3/8" (9.52 mm), 4" x 4-1/2" (102 mm x 114 mm)

Heavy-Duty Caster – 8″ (203.2 mm), 1000 lbs. (453.6 kg.), Solid Elastomer, Swivel, Steel, 2″ (50.8 mm), 2-5/8″ – 3″ (67 mm x 76 mm) – 3″ – 3-5/8″ (76 mm – 92 mm), 3/8″ (9.52 mm), 4″ x 4-1/2″ (102 mm x 114 mm)

SKU 010-LPJ740 Category Brand:

$249.90 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • 3/4" rivet
  • 1/2" axle
  • Double row ball bearing swivel/both raceways equal diameter
  • Standard with swivel seals and grease fittings in swivel and axle
  • All swivel parts case hardened to Rockwell 62C
  • Tread guards standard on wheels
  • Bright zinc finish ; Excellent for:
  • Institutional equipment
  • Warehouse use

Additional information

Weight 3.4019399999999997 kg
Dimensions 17.068800000000003 × 17.068800000000003 × 17.068800000000003 cm
Manufacturer Model

31-408-PSE
Wheel Diameter

8" (203.2 mm)
Capacity

1000 lbs. (453.6 kg.)
Wheel Material

Solid Elastomer
Caster Type

Swivel
Frame Material

Steel
Tread Width

2" (50.8 mm)
Bolt Hole Spacing

2-5/8" – 3" (67 mm x 76 mm) – 3" – 3-5/8" (76 mm – 92 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

4" x 4-1/2" (102 mm x 114 mm)
Bearing Type

Precision Ball
Swivel Radius

5.75"
Overall Height

9.75"
