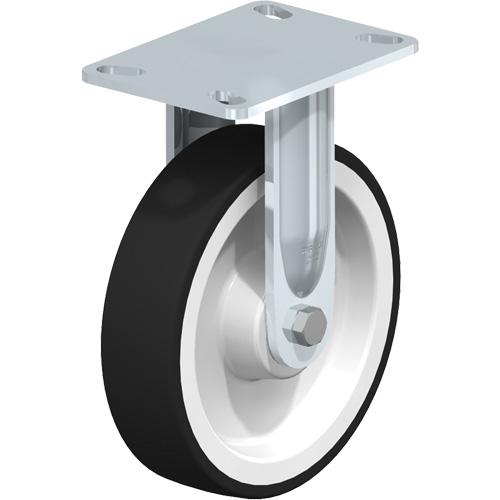

Heavy-Duty Kingpinless Caster - 8" (203.2 mm), 1760 lbs. (798.32 kg.), Thermoplastic Polyurethane, Rigid, Steel, 2" (50.8 mm), 2-7/16" x 5-1/4" (62 mm x 133 mm) to 3-3/8" x 4-15/16" (86 mm x 125 mm), 1/2" (12.7 mm)

Heavy-Duty Kingpinless Caster – 8″ (203.2 mm), 1760 lbs. (798.32 kg.), Thermoplastic Polyurethane, Rigid, Steel, 2″ (50.8 mm), 2-7/16″ x 5-1/4″ (62 mm x 133 mm) to 3-3/8″ x 4-15/16″ (86 mm x 125 mm), 1/2″ (12.7 mm)

SKU 010-LPO030 Category Brand:

$197.40 / Each

2 in stock (can be backordered)

2 in stock (can be backordered)

Add to quote

Description

  • 1/2" zerk axle and lock nut
  • 5/16" diameter thrust raceway; 5/16" diameter kingpin raceway
  • Raceway protected from dust and dirt
  • Corrosion resistant bright zinc finish
  • Brake type: Total locking ; Excellent for:
  • Abusive conditions
  • Tow lines
  • Industrial platform trucks
  • Most hardworking industrial functions
  • Economical handling of heavy loads where severe abuse is present

Additional information

Weight 3.0472310559999998 kg
Dimensions 20.319796800000002 × 24.8917968 × 11.43 cm
Manufacturer Model

BHS-POTH 200K-16
Wheel Diameter

8" (203.2 mm)
Capacity

1760 lbs. (798.32 kg.)
Wheel Material

Thermoplastic Polyurethane
Caster Type

Rigid
Frame Material

Steel
Tread Width

2" (50.8 mm)
Bolt Hole Spacing

2-7/16" x 5-1/4" (62 mm x 133 mm) to 3-3/8" x 4-15/16" (86 mm x 125 mm)
Bolt Hole Size

1/2" (12.7 mm)
Plate Size

4-1/2" x 6-1/4" (114 mm x 159 mm)
Bearing Type

Roller
Swivel Radius

6.5"
Overall Height

9.5"
