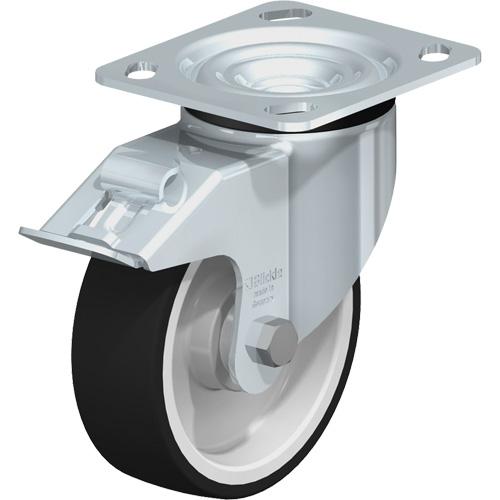

Heavy-Duty Kingpinless Caster - 5" (127 mm), 770 lbs. (349 kg.), Thermoplastic Polyurethane, Swivel with Brake, Steel, 1-9/16" (40 mm), 2-5/8" x 3-5/8" (67 mm x 92 mm) to 3" x 3" (76 mm x 76 mm), 3/8" (9.52 mm)

Heavy-Duty Kingpinless Caster – 5″ (127 mm), 770 lbs. (349 kg.), Thermoplastic Polyurethane, Swivel with Brake, Steel, 1-9/16″ (40 mm), 2-5/8″ x 3-5/8″ (67 mm x 92 mm) to 3″ x 3″ (76 mm x 76 mm), 3/8″ (9.52 mm)

SKU 010-LPO061 Category Brand:

$127.05 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • 1/2" zerk axle and lock nut
  • 5/16" diameter thrust raceway; 5/16" diameter kingpin raceway
  • Raceway protected from dust and dirt
  • Corrosion resistant bright zinc finish
  • Brake type: Total locking ; Excellent for:
  • Abusive conditions
  • Tow lines
  • Industrial platform trucks
  • Most hardworking industrial functions
  • Economical handling of heavy loads where severe abuse is present

Additional information

Weight 1.4288148 kg
Dimensions 20.319796800000002 × 16.002000000000002 × 10.159898400000001 cm
Manufacturer Model

LK-POTH 125KA-14-FI
Wheel Diameter

5" (127 mm)
Capacity

770 lbs. (349 kg.)
Wheel Material

Thermoplastic Polyurethane
Caster Type

Swivel with Brake
Frame Material

Steel
Tread Width

1-9/16" (40 mm)
Bolt Hole Spacing

2-5/8" x 3-5/8" (67 mm x 92 mm) to 3" x 3" (76 mm x 76 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

4" x 4-1/2" (102 mm x 114 mm)
Bearing Type

Roller
Swivel Radius

4.25"
Overall Height

6.5"
