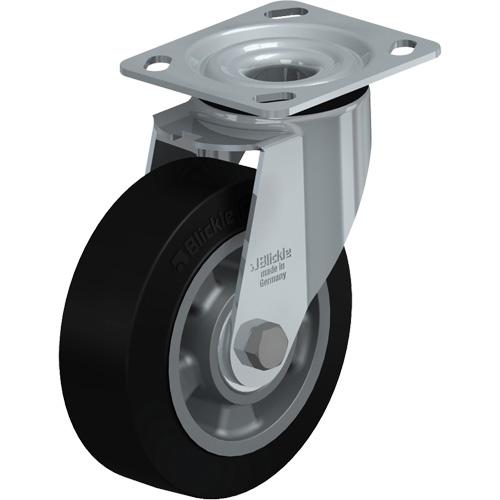

Heavy-Duty Kingpinless Caster - 6" (152.4 mm), 660 lbs. (300 kg.), Rubber, Swivel, Steel, 2-1/8" (54 mm), 2-5/8" x 3-5/8" (67 mm x 92 mm) to 3" x 3" (76 mm x 76 mm), 3/8" (9.52 mm), 4" x 4-1/2" (102 mm x 114 mm)

Heavy-Duty Kingpinless Caster – 6″ (152.4 mm), 660 lbs. (300 kg.), Rubber, Swivel, Steel, 2-1/8″ (54 mm), 2-5/8″ x 3-5/8″ (67 mm x 92 mm) to 3″ x 3″ (76 mm x 76 mm), 3/8″ (9.52 mm), 4″ x 4-1/2″ (102 mm x 114 mm)

SKU 010-LPO913 Category Brand:

$127.05 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • 1/2" zerk axle and lock nut
  • 5/16" diameter thrust raceway; 5/16" diameter kingpin raceway
  • Raceway protected from dust and dirt
  • Corrosion resistant bright zinc finish
  • Brake type: Total locking ; Excellent for:
  • Abusive conditions
  • Tow lines
  • Industrial platform trucks
  • Most hardworking industrial functions
  • Economical handling of heavy loads where severe abuse is present

Additional information

Weight 3.7357837120000004 kg
Dimensions 19.812 × 19.05 × 11.43 cm
Manufacturer Model

LE-ALEV 150K-14
Wheel Diameter

6" (152.4 mm)
Capacity

660 lbs. (300 kg.)
Wheel Material

Rubber
Caster Type

Swivel
Frame Material

Steel
Tread Width

2-1/8" (54 mm)
Bolt Hole Spacing

2-5/8" x 3-5/8" (67 mm x 92 mm) to 3" x 3" (76 mm x 76 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

4" x 4-1/2" (102 mm x 114 mm)
Bearing Type

Roller
Swivel Radius

4.875"
Overall Height

7.5"
