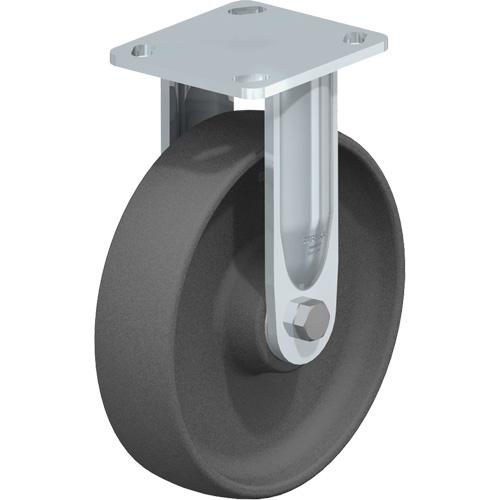

Heavy-Duty Kingpinless Caster - 8" (203.2 mm), 1250 lbs. (567 kg.), Nylon, Rigid, Steel, 2" (50.8 mm), 2-5/8" x 3-5/8" (67 mm x 92 mm) to 3" x 3" (76 mm x 76 mm), 3/8" (9.52 mm), 4" x 4-1/2" (102 mm x 114 mm)

Heavy-Duty Kingpinless Caster – 8″ (203.2 mm), 1250 lbs. (567 kg.), Nylon, Rigid, Steel, 2″ (50.8 mm), 2-5/8″ x 3-5/8″ (67 mm x 92 mm) to 3″ x 3″ (76 mm x 76 mm), 3/8″ (9.52 mm), 4″ x 4-1/2″ (102 mm x 114 mm)

SKU 010-LPO922 Category Brand:

$114.45 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • 1/2" zerk axle and lock nut
  • 5/16" diameter thrust raceway; 5/16" diameter kingpin raceway
  • Raceway protected from dust and dirt
  • Corrosion resistant bright zinc finish
  • Brake type: Total locking ; Excellent for:
  • Abusive conditions
  • Tow lines
  • Industrial platform trucks
  • Most hardworking industrial functions
  • Economical handling of heavy loads where severe abuse is present

Additional information

Weight 2.721552 kg
Dimensions 25.7175 × 8.8392 × 25.7175 cm
Manufacturer Model

BEHS-POG 200K-14
Wheel Diameter

8" (203.2 mm)
Capacity

1250 lbs. (567 kg.)
Wheel Material

Nylon
Caster Type

Rigid
Frame Material

Steel
Tread Width

2" (50.8 mm)
Bolt Hole Spacing

2-5/8" x 3-5/8" (67 mm x 92 mm) to 3" x 3" (76 mm x 76 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

4" x 4-1/2" (102 mm x 114 mm)
Bearing Type

Roller
Swivel Radius

6.5"
Overall Height

9.5"
