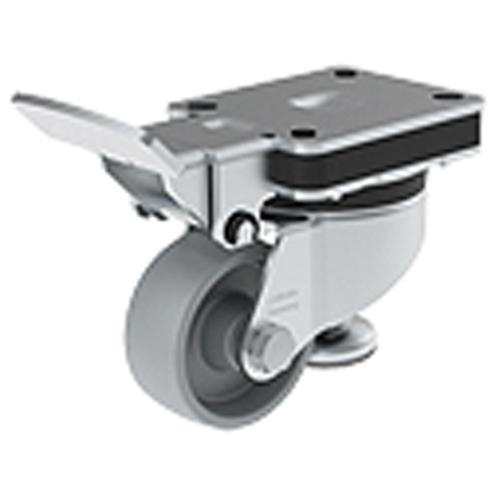

Heavy-Pressed Caster - 3" (76 mm), 660 lbs. (300 kg.), Steel, Swivel, Steel, 1-1/4" (31.75 mm), 3-1/4" x 2-3/8" (83 mm x 60 mm), 11/32" (9 mm), 4" x 3-3/8" (102 mm x 86 mm), 70° Shore D, Plain Bore

Heavy-Pressed Caster – 3″ (76 mm), 660 lbs. (300 kg.), Steel, Swivel, Steel, 1-1/4″ (31.75 mm), 3-1/4″ x 2-3/8″ (83 mm x 60 mm), 11/32″ (9 mm), 4″ x 3-3/8″ (102 mm x 86 mm), 70° Shore D, Plain Bore

SKU 010-LPR921 Category Brand:

$289.80 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Swivel rig with double ball bearing in the swivel head
  • Minimal swivel head play and smooth rolling characteristics
  • Medium heavy duty rigs, with top plate fitting
  • Low rolling and swivel resistance for smooth running performance
  • High chemical resistance to many aggressive substances
  • Operating temperature: -15° F to +175° F

Additional information

Weight 1.814368 kg
Dimensions 15.24 × 12.192 × 15.24 cm
Manufacturer Model

HRLK-SPO 75G
Wheel Diameter

3" (76 mm)
Capacity

660 lbs. (300 kg.)
Wheel Material

Steel
Caster Type

Swivel
Frame Material

Steel
Tread Width

1-1/4" (31.75 mm)
Bolt Hole Spacing

3-1/4" x 2-3/8" (83 mm x 60 mm)
Bolt Hole Size

11/32" (9 mm)
Plate Size

4" x 3-3/8" (102 mm x 86 mm)
Tread & Tire Hardness

70° Shore D
Bearing Type

Plain Bore
Total Height

4-3/4"
