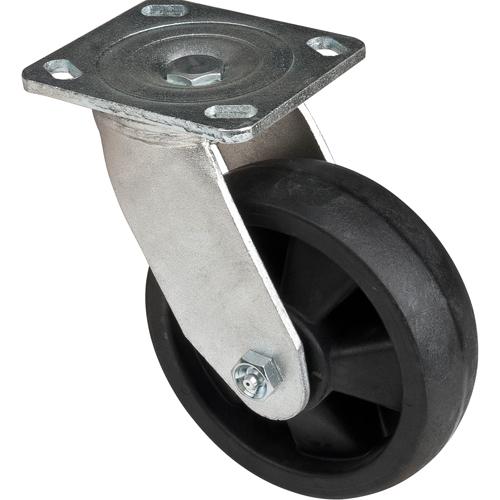

Hi-Temp Caster - 6" (152.4 mm), 8" (203.2 mm), 880 lbs. (399 kg.), Nylon, Swivel, Steel, 1-3/4" (44.5 mm), 2-5/8" x 3-5/8" (66.67 mm x 92.07 mm) - 3" x 3" (76.2 mm x 76.2 mm), 7/16" (11 mm), 4" x 4-1/2" (102 mm x 114 mm)

Hi-Temp Caster – 6″ (152.4 mm), 8″ (203.2 mm), 880 lbs. (399 kg.), Nylon, Swivel, Steel, 1-3/4″ (44.5 mm), 2-5/8″ x 3-5/8″ (66.67 mm x 92.07 mm) – 3″ x 3″ (76.2 mm x 76.2 mm), 7/16″ (11 mm), 4″ x 4-1/2″ (102 mm x 114 mm)

SKU 010-LPO194 Category Brand:

Price range: $59.48 through $78.17 / Each

Available on backorder

Add to quote

Description

  • Smooth rolling, low noise operation
  • Non-marking
  • Zinc chrome-plated finish provides corrosion resistance
  • Superior resistance to most oils, chemicals and grease
  • Double ball raceway
  • Ball bearing; Plate size: 4" x 4 1/2"; Bolt hole centers: 3" x 3 1/3"; Bolt hole size: 7/16"

Additional information

Weight 2.271588736 kg
Dimensions 19.05 × 19.303898399999998 × 10.159898400000001 cm
Wheel Diameter

6" (152.4 mm), 8" (203.2 mm)
Capacity

880 lbs. (399 kg.)
Wheel Material

Nylon
Caster Type

Swivel
Frame Material

Steel
Tread Width

1-3/4" (44.5 mm)
Bolt Hole Spacing

2-5/8" x 3-5/8" (66.67 mm x 92.07 mm) – 3" x 3" (76.2 mm x 76.2 mm)
Bolt Hole Size

7/16" (11 mm)
Plate Size

4" x 4-1/2" (102 mm x 114 mm)
Height

7 5/8" H
Max Temperature

230°C
Manufacturer's Warranty

1 Year Limited
