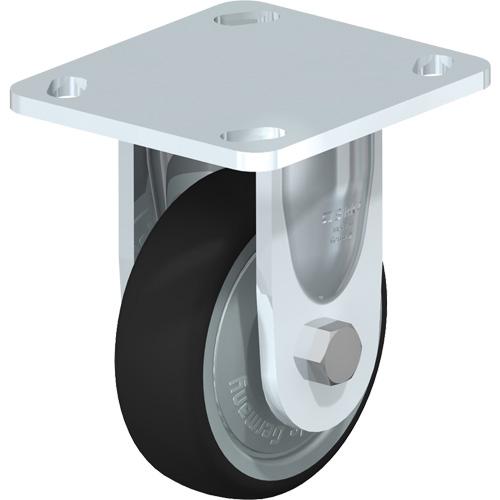

High-Quality Caster - 4" (101.6 mm), 440 lbs. (199.58 kg.), Thermoplastic Polyurethane, Rigid, Steel, 1-1/4" (31.75 mm), 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm), 3/8" (9.52 mm), 4" x 4-1/2" (102 mm x 114 mm)

High-Quality Caster – 4″ (101.6 mm), 440 lbs. (199.58 kg.), Thermoplastic Polyurethane, Rigid, Steel, 1-1/4″ (31.75 mm), 2-5/8″ x 3-5/8″ (67 mm x 92 mm) – 3″ x 3″ (76 mm x 76 mm), 3/8″ (9.52 mm), 4″ x 4-1/2″ (102 mm x 114 mm)

SKU 010-LPR813 Category Brand:

$64.68 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Pressed steel rigid caster
  • Low-noise operation, rolling and swivel resistance
  • Non-marking, non-staining surface
  • High chemical resistance to many aggressive substances
  • Operating temperature: -15° F to +160° F

Additional information

Weight 1.360776 kg
Dimensions 15.24 × 12.192 × 18.288 cm
Manufacturer Model

BKS-PATH 100KF-14
Wheel Diameter

4" (101.6 mm)
Capacity

440 lbs. (199.58 kg.)
Wheel Material

Thermoplastic Polyurethane
Caster Type

Rigid
Frame Material

Steel
Tread Width

1-1/4" (31.75 mm)
Bolt Hole Spacing

2-5/8" x 3-5/8" (67 mm x 92 mm) – 3" x 3" (76 mm x 76 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

4" x 4-1/2" (102 mm x 114 mm)
Tread & Tire Hardness

94° Shore A
Bearing Type

Ball Bearing
Total Height

5-1/8"
