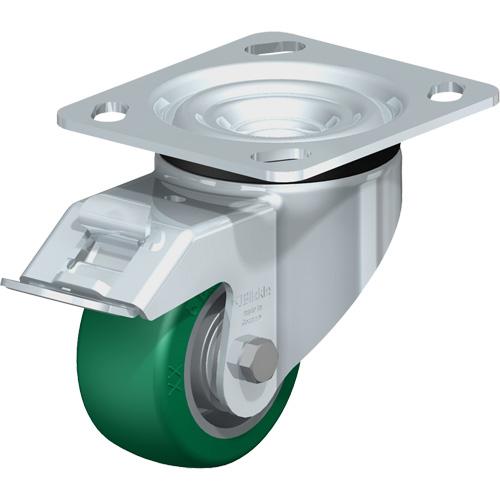

High-Quality Caster - 3-1/8" (79.5 mm), 505 lbs. (230 kg.), Polyurethane Elastomer, Swivel with Brake, Steel, 1-9/16" (40 mm), 2-5/8" x 3-5/8" (67 mm x 92 mm) - 3" x 3" (76 mm x 76 mm), 3/8" (9.52 mm)

High-Quality Caster – 3-1/8″ (79.5 mm), 505 lbs. (230 kg.), Polyurethane Elastomer, Swivel with Brake, Steel, 1-9/16″ (40 mm), 2-5/8″ x 3-5/8″ (67 mm x 92 mm) – 3″ x 3″ (76 mm x 76 mm), 3/8″ (9.52 mm)

SKU 010-LPR892 Category Brand:

$161.70 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Swivel rig with double ball bearing in the swivel head
  • Minimal swivel head play and smooth rolling characteristics
  • High operational comfort due to extremely thick, elastic tread
  • Low-noise operation and rolling resistance
  • High abrasion resistance, cut and tear propagation resistance
  • Operating temperature: -15° F to +160° F

Additional information

Weight 1.261892944 kg
Dimensions 17.526 × 11.1757968 × 10.159898400000001 cm
Manufacturer Model

LK-ALST 82K-14-FI
Wheel Diameter

3-1/8" (79.5 mm)
Capacity

505 lbs. (230 kg.)
Wheel Material

Polyurethane Elastomer
Caster Type

Swivel with Brake
Frame Material

Steel
Tread Width

1-9/16" (40 mm)
Bolt Hole Spacing

2-5/8" x 3-5/8" (67 mm x 92 mm) – 3" x 3" (76 mm x 76 mm)
Bolt Hole Size

3/8" (9.52 mm)
Plate Size

4" x 4-1/2" (102 mm x 114 mm)
Tread & Tire Hardness

75° Shore A
Bearing Type

Ball Bearing
Total Height

4-3/8"
