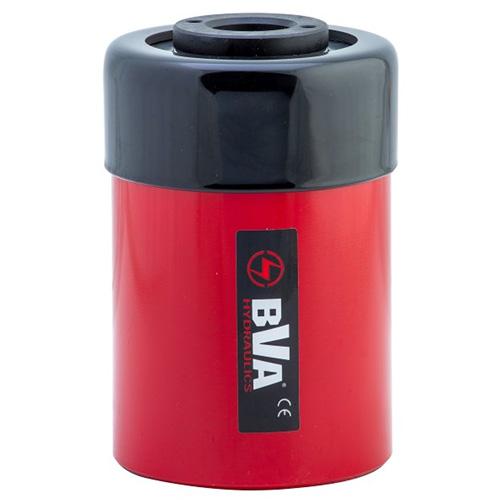

Hollow Hole Hydraulic Cylinder - 30 Ton(s), 2.52", 10000 PSI, 7-1/20", 9-57/100", Steel, 261.05 CC, 2.84", 4.5"

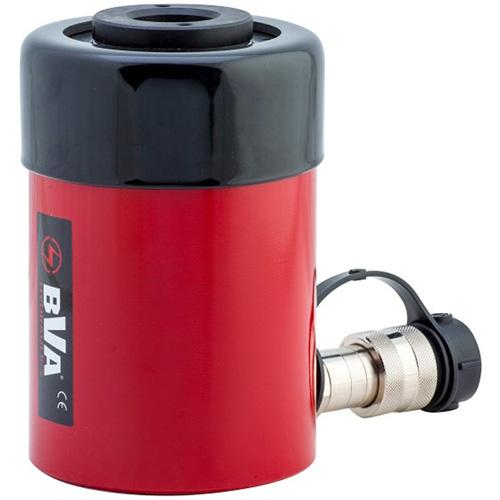

Hollow Hole Hydraulic Cylinder - 30 Ton(s), 2.52", 10000 PSI, 7-1/20", 9-57/100", Steel, 261.05 CC, 2.84", 4.5" - Image 2

Hollow Hole Hydraulic Cylinder – 30 Ton(s), 2.52″, 10000 PSI, 7-1/20″, 9-57/100″, Steel, 261.05 CC, 2.84″, 4.5″

SKU 010-LIOX922 Category Brand:

$3,732.75 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • BVA Hydraulics Hollow Hole Single Acting Cylinders work at max. 10,000 psi (700bar), equipped heavy duty compression spring, dual wipers help prevent contamination, and go with collar thread protector
  • Ideal for pulling and pushing applications
  • All BVA cylinders come equipped with a CH38F high flow coupler with dust cap

Additional information

Weight 10.92703128 kg
Dimensions 45.0089016 × 23.4948984 × 44.5008 cm
Manufacturer Model

HC3002T
Capacity

30 Ton(s)
Stroke Length

2.52"
Operating Pressure

10000 PSI
Collapsed Height

7-1/20"
Extended Height

9-57/100"
Material

Steel
Oil Usage (Push)

261.05 CC
Cylinder Bore

2.84"
Outside Diameter

4.5"
