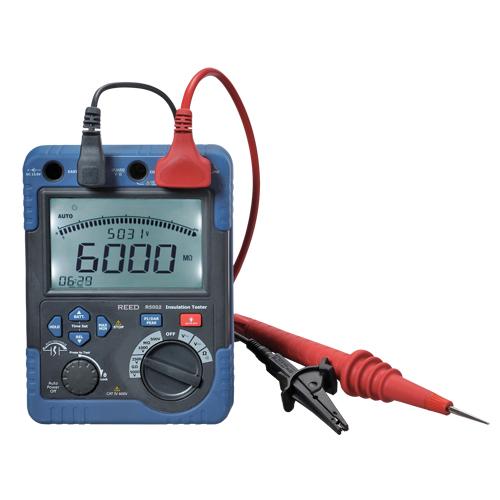

Insulation Resistance Tester with ISO Certificate - Digital, 500V, 1000V, 2500V, 5000V DC, 0 to 60.0GO, ±5% rdg. +3 dgt., '+20%, -0%

Insulation Resistance Tester with ISO Certificate – Digital, 500V, 1000V, 2500V, 5000V DC, 0 to 60.0GO, ±5% rdg. +3 dgt., ‘+20%, -0%

SKU 010-LQMZ489 Category Brand:

$1,223.25 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Wide range measurements from 500V to 5000V and up to 60GO
  • Sources up to 1.2mA current during tests to offset capacitance load
  • Polarization index measurement (PI)
  • Dielectric absorption ratio measurements (DAR)
  • Time set measurement function
  • Auto-discharge function and voltage output warning function
  • Live circuit warning symbols plus audible warning
  • Live circuit detection prevents insulation test if >30V is detected
  • Max/Min, Peak, Relative value and Data Hold functions
  • 6000-count digital display with bar graph and backlight
  • Meets IEC61010-1 Cat. IV 600V safety standards

Additional information

Weight 1.360776 kg
Dimensions 19.812 × 14.6304 × 8.534400000000002 cm
Manufacturer Model

R5002-NIST
Display Type

Digital
Insulation Resistance - Test Voltages

500V, 1000V, 2500V, 5000V DC
Insulation Resistance - Measurement Range

0 to 60.0GO
Insulation Resistance - Accuracy

±5% rdg. +3 dgt.
Insulation Resistance - Open Circuit Voltage

+20%, -0%
