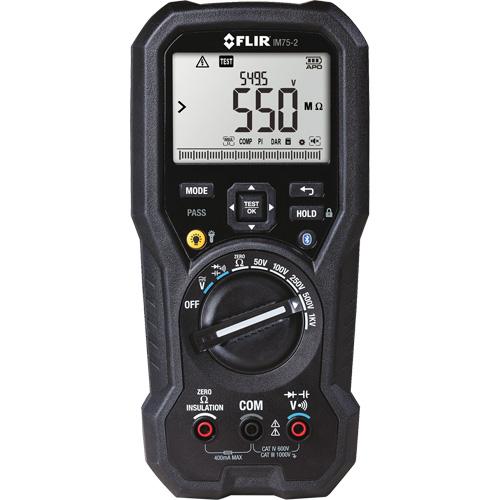

Insulation Tester and Digital Multimeter with METERLiNK® – Digital, 4.000 MΩ ± (1.5% + 5 digits) 40.00 MΩ ± (1.5% + 5 digits) 400.0 MΩ ± (3.0% + 5 digits) 4000 MΩ ± (3.0% + 5 digits) 4.1 G to 20.0 GΩ ± (10.0% + 3 digits)

Description

• Both an advanced multifunction digital multimeter and a premier handheld insulation tester with functions for installation, troubleshooting and maintenance for professionals
• Features several specialty insulation modes such as polarization index, dielectric absorption, and earth bond resistance
• Insulation tests can be performed instantly, continuously, and over a timed duration to allow for in-depth assessment
• The multi-color LED indicator in compare mode makes pass/fail determinations easy and visible
• Use the METERLiNK® app to quickly and efficiently capture readings, images, and videos for analysis, trending, and sharing
• Advanced multifunction digital multimeter and premier handheld insulation tester for installation, troubleshooting and maintenance professionals
• Insulation voltage testing up to 1 kV, measuring insulation resistance from 4 M to 20 G
• Advanced variable frequency drive (VFD) filtering and dual display shows voltage and frequency at once
• True RMS DMM measurements features reliable performance and 1000 V range
• Powerful LED worklights eliminate the need for a flashlight in dim lighting
• Durable, double-molded construction with IP54 rating and 3 m drop tested
• Multi-color LED indicator with Compare Mode makes pass/fail determinations easy and visible
• Capture readings, create reports and easily share them with your team
• Set custom alarm thresholds to provide additional assurance of operating ranges while performing testing procedures
