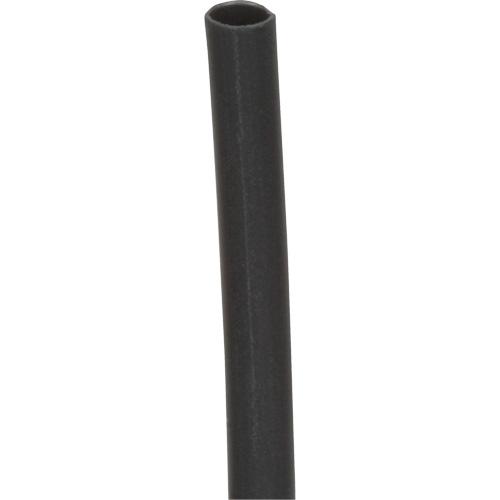

ITCSN Series Heat Shrink Cable Sleeves - 0.40" (10.2mm), 0.8" (20.3mm), 1.1" (27.9mm), 1.5" (38.1mm), 2" (50.8mm), 0.15" (3.8mm), 4', 12 - 6 AWG (4 - 10 mm2), 0.40 / 0.15" (10.2 / 3.8 mm), 0.35 - 0.17" (9 -3.3 mm)
ITCSN Series Heat Shrink Cable Sleeves - 0.40" (10.2mm), 0.8" (20.3mm), 1.1" (27.9mm), 1.5" (38.1mm), 2" (50.8mm), 0.15" (3.8mm), 4', 12 - 6 AWG (4 - 10 mm2), 0.40 / 0.15" (10.2 / 3.8 mm), 0.35 - 0.17" (9 -3.3 mm) - Image 2

ITCSN Series Heat Shrink Cable Sleeves – 0.40″ (10.2mm), 0.8″ (20.3mm), 1.1″ (27.9mm), 1.5″ (38.1mm), 2″ (50.8mm), 0.15″ (3.8mm), 4′, 12 – 6 AWG (4 – 10 mm2), 0.40 / 0.15″ (10.2 / 3.8 mm), 0.35 – 0.17″ (9 -3.3 mm)

SKU 010-LAF683 Category Brand:

Price range: $298.83 through $625.38 / Pack of 5

Available on backorder

Add to quote

Description

  • ITCSN heavy wall cable sleeves are fabricated from cross linked polyolefin

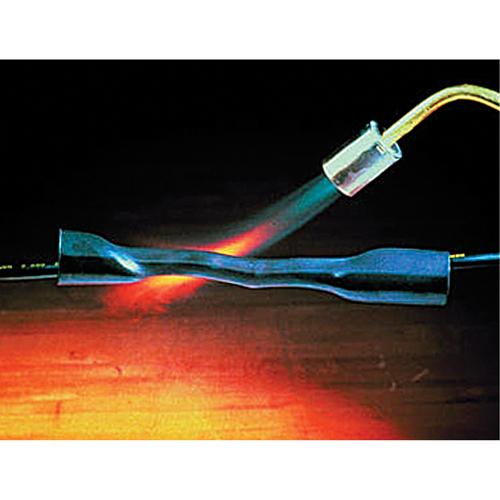

  • Highly split resistant and fast shrinking to provide rapid installation;
  • Tubing comes standard with a factory applied adhesive/sealant
  • Thick walls top resist puncture and abrasion damage
  • Complete environmental protection
  • Shrink ratio as high as 4:1;
  • Resists acids and alkalis
  • Bonds to a wide variety of substrates
  • Rated to 1 kV, UL Listed 486 D for 600 V; CSA rating
  • Simplifies selection of the right connector for a wide range of wiring jobs

Additional information

Weight 0.57606184 kg
Dimensions 8.1277968 × 127.7617968 × 8.1277968 cm
Manufacturer Model

ITCSN-0400-48
Expanded Inside Diameter

0.40" (10.2mm), 0.8" (20.3mm), 1.1" (27.9mm), 1.5" (38.1mm), 2" (50.8mm)
Recovered Inside Diameter

0.15" (3.8mm)
Length

4'
Cable Size Range

12 – 6 AWG (4 – 10 mm2)
Minimum Expanded/ Maximum Recovered I.D.

0.40 / 0.15" (10.2 / 3.8 mm)
Cable O.D. Use Range Maximum - Minimum

0.35 – 0.17" (9 -3.3 mm)
Qty/Pkg.

5
