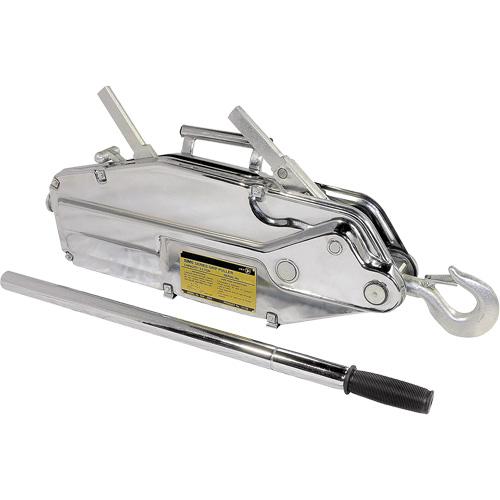

JGP-300A 3 Ton Heavy-Duty Grip Puller without Cable – 5.7 T, 5/8″, 44″

Description

• Compact high strength steel housing
• Light weight, simple and safe to operate
• May be used in any position to lift, pull, lower, or stretch heavy loads
• The rope clamp system is easily disengaged with a lever, allowing smooth installation of the wire rope
• Overload protection is built-in with a shear pin in the forward lever, which will break when overloaded
• The broken pins can be replaced without removing the load and spare shear pins are conveniently located in the rubber sleeve of the telescopic handle for SGP-75A and in the carrying handle for the SGP-150A and SGP-300A
• The design enables wire rope to be fed through 2 sets of wear resistant interlocking jaws by a single operating lever
• The SGP Wire Rope Pulling Hoist has a parallel clamping system, which has a large surface contact area, providing an evenly distributed grip at a lower force that results in less rope wear and maximum safety
• All SGP Wire Rope Pulling Hoists are tested and have individual serial numbers for easy traceability to a test certificate (included)
• Uses standard ASA and IWRC wire rope (not included)
• Meets ANSI B30.21 standards (certificate included)
