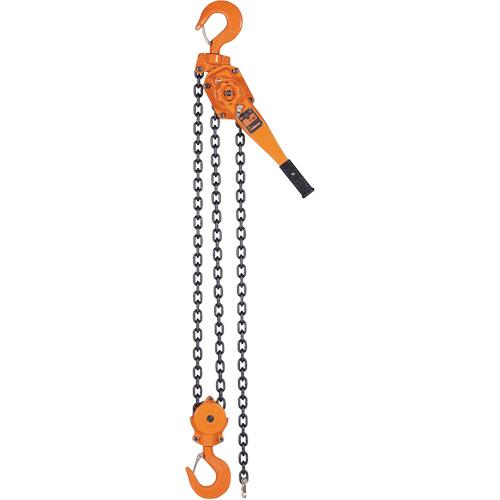

KLP Series Lever Chain Hoists – 12000 lbs. (6 tons), 5′, Steel, 81 lb, 10.0 mm, ISO 9001-2008 Certified Factory, ASME B30.16 standards, Heavy Duty

SKU 010-LXDZ329 Category Lever Chain Hoists Brand: JET

$1,627.50 / Each

Available on backorder

Description

Ideal for rigging, lifting, and horizontal pulling applications
High impact gear case and brake cover for heavy-duty service
Made with grade 100 load chain for superior strength
Caged ball bearings on load sprocket provide smooth and easy operation
Dual pawl Weston style brake features extra heavy pawl springs for reliable and safe operation
Top and bottom safety hooks are engineered to bend to warn of accidental overloads
Cast steel safety latches exceed industry standards
Deformation indicators on hooks allow accurate measurement for easy maintenance
Custom lifts are available in any length

Weight	27.759830400000002 kg
Dimensions	54.62016 × 19.690080000000002 × 22.34184 cm
Manufacturer Model	110405
Capacity	12000 lbs. (6 tons)
Lift	5'
Chain Material	Steel
Force Required to Lift	81 lb
Load Chain Diameter	10.0 mm
Certification	ISO 9001-2008 Certified Factory, ASME B30.16 standards
Duty Level	Heavy Duty
