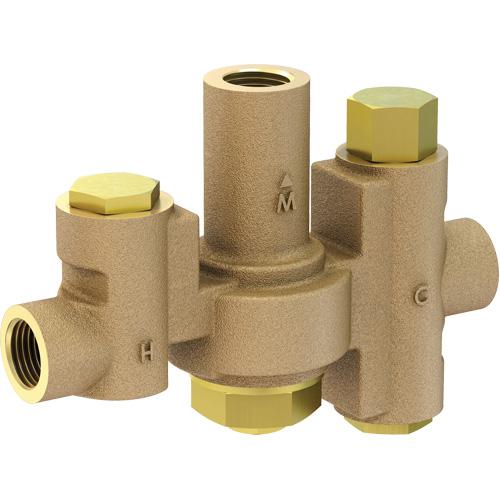

Low Capacity Thermostatic Mixing Valve for Individual Eye/Face Wash Stations – 2 – 35.1 GPM, 1 Year, 35 – 125 PSI, 1/2″ (F)

Description

• Positive hot water shut-off eliminates the delivery of scalding water to equipment
• Integral cold water bypass ensures reliable cold water delivery if hot water supply is interrupted
• Integral cartridge style checks with screens to prevent backflow and to filter debris entering the valve
• Certified to ASSE 1071 standards
• These valves blend hot and cold supply water to deliver tepid water (85°F / 29°C) to emergency equipment
• With a range of 2 to 9.8 GPM at 30 PSI (7.6 to 37.1 LPM at 2 BAR G), this low-capacity valve is sufficient for a single eyewash
• Best specified for systems requiring bypass rates of up to 6.5 GPM (24.5 LPM)
• The valve can be installed into existing emergency shower applications and is easily tested and repaired
• Helps meet ANSI Z358.1-2014 and accurately controls outlet temperature in accordance with ASSE 1071 standards
• ASSE 1071 approved and lead free certified
