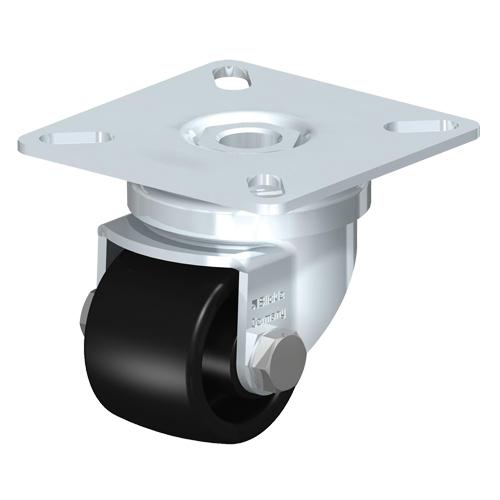

Low-Profile Caster - 1-3/8" (35 mm), 165 lbs. (75 kg.), Nylon, Swivel, Steel, 1" (25.4 mm), 1-1/2" x 1-1/2" (38 mm x 38 mm) - 1-7/8" x 1-7/8" (48 mm x 48 mm), 1/4" (6.35 mm), 2-3/8" x 2-3/8" (60 mm x 60 mm)

Low-Profile Caster – 1-3/8″ (35 mm), 165 lbs. (75 kg.), Nylon, Swivel, Steel, 1″ (25.4 mm), 1-1/2″ x 1-1/2″ (38 mm x 38 mm) – 1-7/8″ x 1-7/8″ (48 mm x 48 mm), 1/4″ (6.35 mm), 2-3/8″ x 2-3/8″ (60 mm x 60 mm)

SKU 010-LPR049 Category Brand:

$14.07 / Each

2 in stock (can be backordered)

2 in stock (can be backordered)

Add to quote

Description

  • Swivel rig with double ball bearing in the swivel head
  • Minimal swivel head play and smooth rolling characteristics
  • Medium heavy duty rigs, with top plate fitting
  • Low rolling and swivel resistance for smooth running performance
  • High abrasion resistance
  • Operating temperature: -15° F to +175° F

Additional information

Weight 0.17690088 kg
Dimensions 6.096 × 5.0797968000000004 × 6.096 cm
Manufacturer Model

LPA-POA 35G
Wheel Diameter

1-3/8" (35 mm)
Capacity

165 lbs. (75 kg.)
Wheel Material

Nylon
Caster Type

Swivel
Frame Material

Steel
Tread Width

1" (25.4 mm)
Bolt Hole Spacing

1-1/2" x 1-1/2" (38 mm x 38 mm) – 1-7/8" x 1-7/8" (48 mm x 48 mm)
Bolt Hole Size

1/4" (6.35 mm)
Plate Size

2-3/8" x 2-3/8" (60 mm x 60 mm)
Tread & Tire Hardness

70° Shore D
Bearing Type

Plain Bore
Total Height

2"
