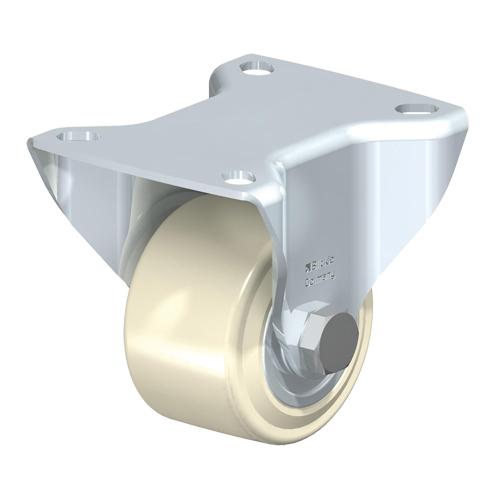

Low-Profile Caster - 2-1/2" (63.5 mm), 440 lbs. (199.58 kg.), Nylon, Rigid, Steel, 1-1/2" (38 mm), 3-1/8" x 2-3/8" (80 mm x 60 mm), 11/32" (9 mm), 4" x 3-3/8" (102 mm x 86 mm), 80° Shore D, Ball Bearing

Low-Profile Caster – 2-1/2″ (63.5 mm), 440 lbs. (199.58 kg.), Nylon, Rigid, Steel, 1-1/2″ (38 mm), 3-1/8″ x 2-3/8″ (80 mm x 60 mm), 11/32″ (9 mm), 4″ x 3-3/8″ (102 mm x 86 mm), 80° Shore D, Ball Bearing

SKU 010-LPR052 Category Brand:

$127.05 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Pressed steel rigid caster
  • Medium heavy duty rigs, with top plate fitting
  • Low rolling resistance for smooth running performance
  • High chemical resistance to aggressive substances
  • High abrasion resistance
  • Operating temperature: -15° F to +160° F

Additional information

Weight 1.814368 kg
Dimensions 15.24 × 12.192 × 15.24 cm
Manufacturer Model

BK-GSPO 65K
Wheel Diameter

2-1/2" (63.5 mm)
Capacity

440 lbs. (199.58 kg.)
Wheel Material

Nylon
Caster Type

Rigid
Frame Material

Steel
Tread Width

1-1/2" (38 mm)
Bolt Hole Spacing

3-1/8" x 2-3/8" (80 mm x 60 mm)
Bolt Hole Size

11/32" (9 mm)
Plate Size

4" x 3-3/8" (102 mm x 86 mm)
Tread & Tire Hardness

80° Shore D
Bearing Type

Ball Bearing
Total Height

3-1/2"
