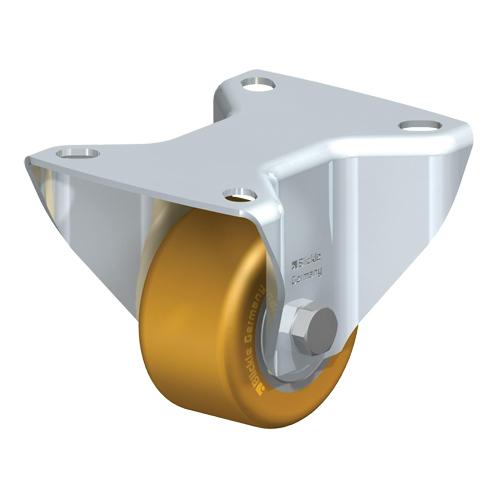

Low-Profile Caster - 2" (51 mm), 440 lbs. (199.58 kg.), Polyurethane, Rigid, Steel, 1-3/8" (35 mm), 3-1/8" x 2-3/8" (80 mm x 60 mm), 11/32" (9 mm), 4" x 3-3/8" (102 mm x 86 mm), 92° Shore A, Ball Bearing

Low-Profile Caster – 2″ (51 mm), 440 lbs. (199.58 kg.), Polyurethane, Rigid, Steel, 1-3/8″ (35 mm), 3-1/8″ x 2-3/8″ (80 mm x 60 mm), 11/32″ (9 mm), 4″ x 3-3/8″ (102 mm x 86 mm), 92° Shore A, Ball Bearing

SKU 010-LPR059 Category Brand:

$122.85 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • Pressed steel rigid caster
  • Medium heavy duty rigs, with top plate fitting
  • Low rolling resistance for smooth running performance
  • High abrasion resistance, cut and tear propagation resistance
  • High operational comfort and low-noise operation
  • Operating temperature: -15° F to +160° F

Additional information

Weight 0.549753504 kg
Dimensions 10.159898400000001 × 8.382000000000001 × 8.382000000000001 cm
Manufacturer Model

B-VSTH 60K
Wheel Diameter

2" (51 mm)
Capacity

440 lbs. (199.58 kg.)
Wheel Material

Polyurethane
Caster Type

Rigid
Frame Material

Steel
Tread Width

1-3/8" (35 mm)
Bolt Hole Spacing

3-1/8" x 2-3/8" (80 mm x 60 mm)
Bolt Hole Size

11/32" (9 mm)
Plate Size

4" x 3-3/8" (102 mm x 86 mm)
Tread & Tire Hardness

92° Shore A
Bearing Type

Ball Bearing
Total Height

3-1/8"
