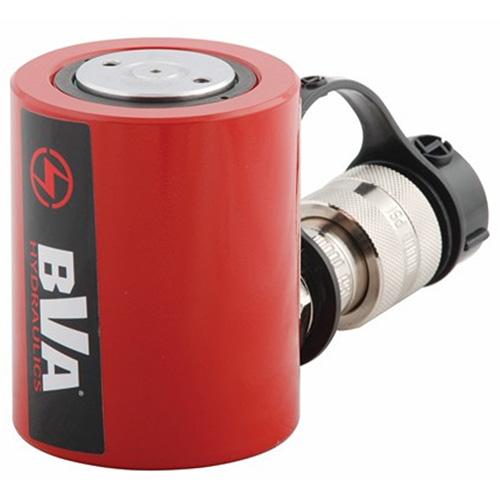

Low Profile Hydraulic Cylinder - 10 Ton(s), 1.5", 10000 PSI, 3-12/25", 4-49/50", Steel, 57.85 CC, 1.73", 2.75"

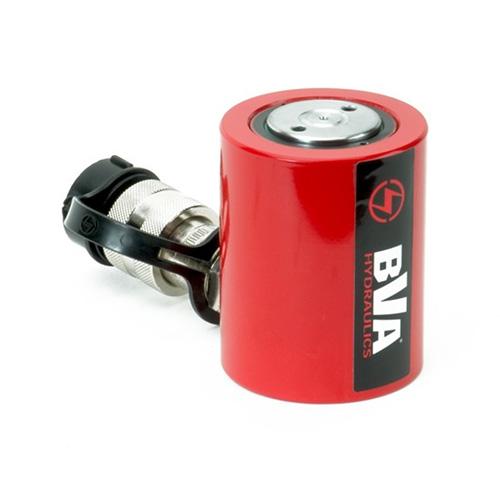

Low Profile Hydraulic Cylinder - 10 Ton(s), 1.5", 10000 PSI, 3-12/25", 4-49/50", Steel, 57.85 CC, 1.73", 2.75" - Image 2

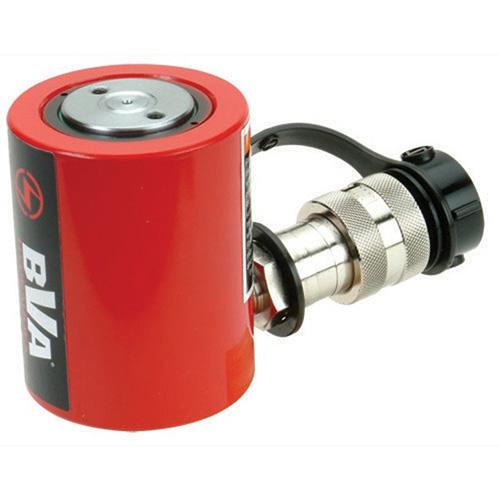

Low Profile Hydraulic Cylinder - 10 Ton(s), 1.5", 10000 PSI, 3-12/25", 4-49/50", Steel, 57.85 CC, 1.73", 2.75" - Image 3

Low Profile Hydraulic Cylinder – 10 Ton(s), 1.5″, 10000 PSI, 3-12/25″, 4-49/50″, Steel, 57.85 CC, 1.73″, 2.75″

SKU 010-LIOX038 Category Brand:

$1,041.60 / Each

Available on backorder

Available on backorder

Add to quote

Description

  • BVA Hydraulics Low Profile Cylinders work at max. 10,000 psi (700bar), design in compact for use in confined spaces
  • Rod wiper helps seal out dirt and contamination, equiped with special return springs provide quick retraction and extend the service life
  • Hard chrome plated piston rod helps prevent scratching and corrosion
  • Rod end is grooved to reduce load slippage
  • All BVA cylinders come equipped with a CH38F high flow coupler with dust cap

Additional information

Weight 2.77598304 kg
Dimensions 37.9985016 × 23.0124 × 12.496799999999999 cm
Manufacturer Model

HL1001
Capacity

10 Ton(s)
Stroke Length

1.5"
Operating Pressure

10000 PSI
Collapsed Height

3-12/25"
Extended Height

4-49/50"
Material

Steel
Oil Usage (Push)

57.85 CC
Cylinder Bore

1.73"
Outside Diameter

2.75"
