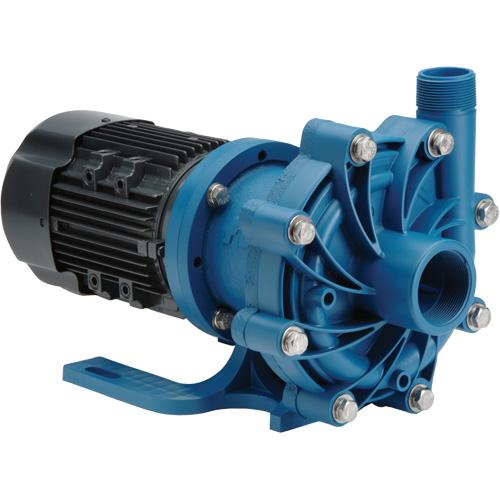

Magnetic Drive Pump with Carbon Bushing - 2", 1-1/2", 3 HP, 98', 5 Years, NPT, 5.125", 8-Pole

Magnetic Drive Pump with Carbon Bushing – 2″, 1-1/2″, 3 HP, 98′, 5 Years, NPT, 5.125″, 8-Pole

SKU 010-LSXQ508 Category Magnetic Drive Pumps Brand: FTI Finish Thompson Inc.

$4,815.30 / Each

Available on backorder

Available on backorder

Description
Additional information

Description

Extended run dry ability (with carbon bushing)
High operating efficiency
Powerful neodymium magnets
Close-coupled design
Threaded NPT connections
Horizontal or vertical installation
Back pullout design
Mounts to IEC 56, 63, 71 B14 motor frames
Easy set, measurement free drive
CE certified
Working pressure to 60 psi (4.1 bar)
Specific gravity up to 1.8
Viscosity up to 50 cP

Additional information

Weight	30.844256 kg
Dimensions	68.58 × 35.5601016 × 38.1 cm
Manufacturer Model	DB15P-M209
Intake Size	2"
Discharge Port Size	1-1/2"
Motor	3 HP
Suction Head	98'
Manufacturer's Warranty	5 Years
Connection Type	NPT
Impeller Size	5.125"
Magnet Type	8-Pole
