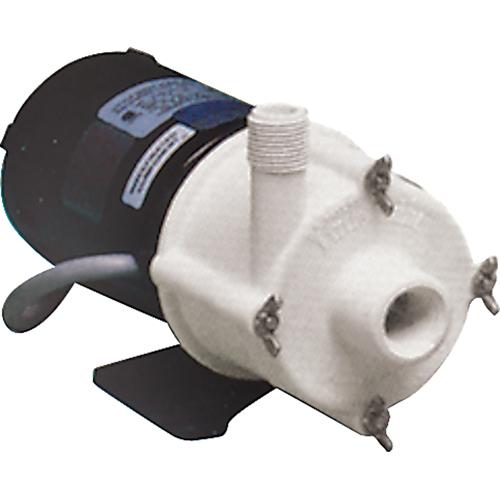

Magnetic-Drive Pumps – Industrial Mildly Corrosive Series – 1/2″, 6″, 1/30 HP, 1.5, 100, 8.5, 7.8

Description

• Leak proof, sealless magnetic drives and designed for in-line, non-submersible use
• Pumping heads are easily rotated, cleaned or serviced with no special tools required
• Spindle shaft is supported at both ends to prevent impeller damage during start-up and stop of pump
• Thermally protected, open, shaded-pole motor (DA356) – fan cooled motor (DA346, DA349)
• Sleeve bearings (DA356, DA346), ball bearing (DA349)
• 3' lead wires without plug (DA356), 6' power cord with 3-prong plug (DA346, DA349)
• Specific gravity to 1.1
• Fluid temperature to 150°F, ambient air temperature to 77°F
• 115 V, 60 Hertz
• UR/C-CSA listing; ; Construction:; Volute: Glass-filled polypropylene; Housing: Glass-filled polypropylene; Impeller: Glass-filled polypropylene and ceramagnet "A" (barium ferrite); Shaft: Stainless steel (DA346), titanium (DA356, DA349); Thrust washers: Rulon "J" (Teflon®) (DA346), titanium (DA356, DA349); O-ring: Nitrile
