Manifold Drill Template for Ford 4.6L

Description

Removes broken exhaust manifold bolts on Ford 4.6L, 5.4L and 6.8L V10 2 Valve and 3 Valve Ford Triton engines without damaging the cylinder head

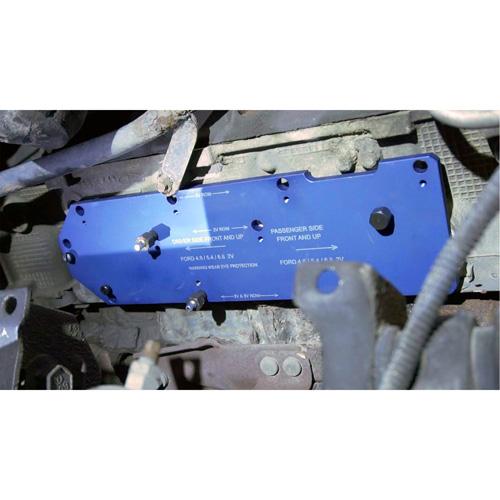

Tapered bolts center base plate over bolt holes and slip fit bushing allows you to move from hole to hole without moving base plate

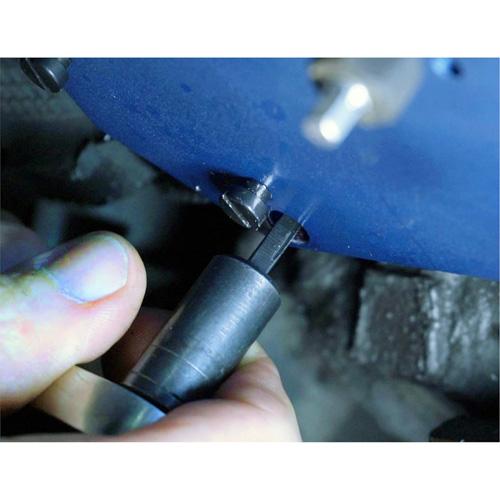

The screw extractor is then used to remove the broken bolt

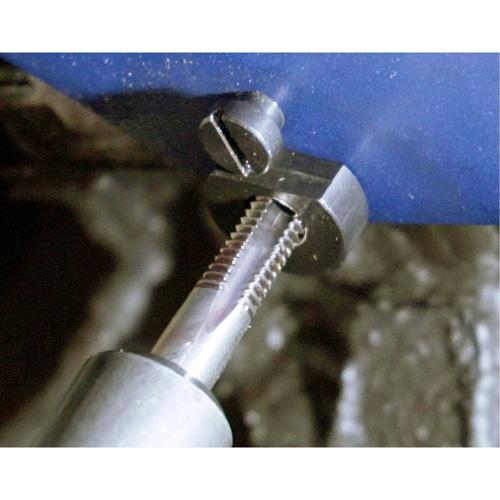

Features bushing to drill to tap size when extractor cannot be used

Weight	1.9005504800000002 kg
Dimensions	21.5898984 × 48.2598984 × 5.715 cm
Manufacturer Model	71600

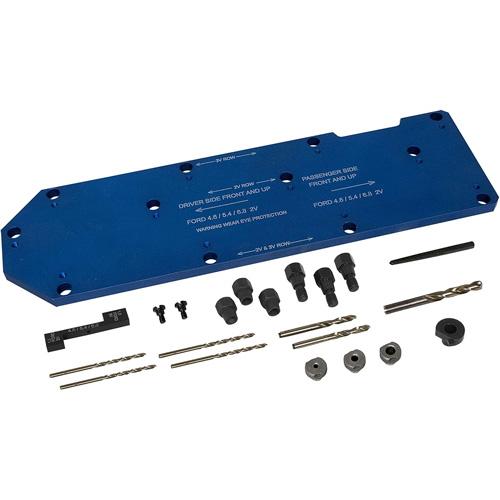

Includes	Stud Extractor; Alignment Bolt; 8mm Tap Aligner; Lock Screw; 1/8" Slip/Fix Bushing; 3/16" Slip Fix Bushing; 17/64" Slip/Fix Bushing; 1/8" Cobalt Drill; 3/16" Cobalt Drill; 17/64" Cobalt Drill; Ford Gas Drill Plate; Ford 4.6 Drill Depth Gauge; Alignment Nut; Case for the 71600
