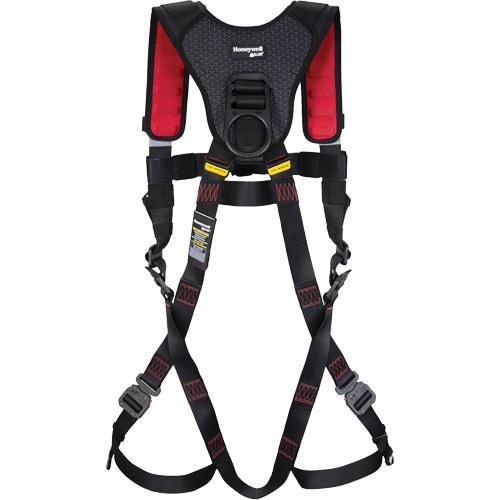

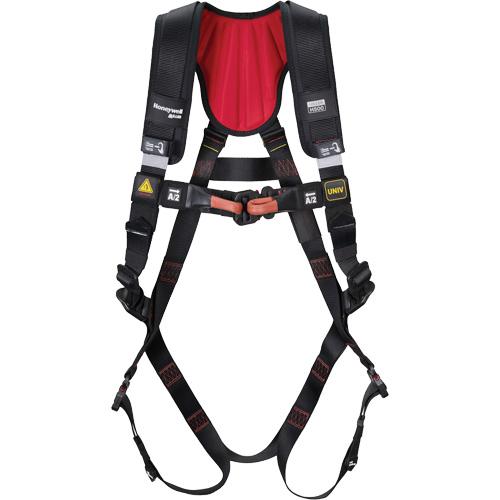

Miller® H500 Arc Flash Full-Body Safety Harness – Fall Arrest/Arc-Resistant, ADLR, 420 lbs., Universal, Small/Medium, 2X-Large, Back, Quick-Connect, Quick-Connect, ASTM F887 OSHA 1926.502, Certified ANSI Z359.11-2021 & CSA Z259.10-2018 Classes A

Description

Polyamide webbing ASTM F887 certified arc flash 40 cal/cm²
Removable shoulder padding
Dielectric back D-ring with dedicated SRL web link for easy attachment of personal SRLs
Polyamide front webbing loops
The A/2 Identification tag serves as a reminder to ensure the secure connection of two webbing loops when utilizing the sternal attachment point
User-friendly resettable lanyard keepers
Allows users to attach lanyard when not in use
Dielectric torso strap adjuster buckle
Easy visual sizing
Dielectric Quick connect on legs and chest
Clearly identifiable smart impact indicators for hassle-free inspection with Outside personalization tag
Improved visible stitch pattern for easy inspection
Clear Arc Flash application visual icon
Optimized label protection with self-contained and practical Velcro®-label FR material pouch
Safety Polyamide Belt with dielectric quick connect buckle
Maximum worker weight capacity rated OSHA and CSA 420 lb. and ANSI 310 lb.

Weight	2.2316726399999998 kg
Dimensions	37.9985016 × 35.991698400000004 × 8.001000000000001 cm
Manufacturer Model	H5AFC2S2
Type	Fall Arrest/Arc-Resistant
Meets/Exceeds CSA Class	ADLR
Weight Capacity	420 lbs.
Size	Universal, Small/Medium, 2X-Large
D-Rings	Back
Leg Strap Connections	Quick-Connect
Chest Strap Connections	Quick-Connect
Standard(s) Met	ASTM F887 OSHA 1926.502, Certified ANSI Z359.11-2021 & CSA Z259.10-2018 Classes A,D,L,R & A,D,L,P,R
